CENTRIC 120.61041 Part Description
Manufacturer
Product Description

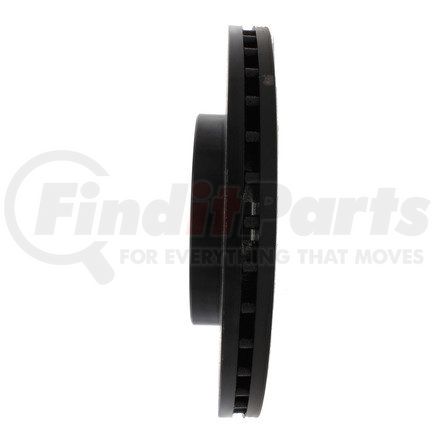

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.61041 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 7.270 |
| Weight [cntrc] Lbs | 16.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.974 IN |
| Discard Thickness | 24.750 MM |
| Nominal Thickness | 26.000 MM |
| Nominal Thickness | 1.024 IN |
| Hat Finish | Painted |
| Overall Height | 1.835 IN |
| Overall Height | 46.600 MM |
| Outside Diameter | 276.000 MM |
| Outside Diameter | 10.866 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 71.100 MM |
| Center Hole Diameter | 2.799 IN |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.200 MM |
| Stud/Lug Hole Diameter | 0.598 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890042235 |
CENTRIC 120.61041 Cross References
| Brand | Part Number |
|---|---|
| 66443, BD125405 | |
| N/A | BD125405, BD125405E, E125-66-046, 6492770, 54011, 107114, 54011G, F6ZC1125AA, YR3Z1V125AA, F4ZC1125AE, F4ZZ1125A, 141911, 86443, 4886443, 1184, AR8141, D17680, E12566046, 54011HC, 120.61041, 54011GT, 54011DSR, YH141911, 54011DSL, 1407-25471, 27110, X50996, BR1925, 66443P, 19760, 8934041, 90054033 |
| NEOTEK | 107114GF |
| Neotek Premium Drums and Rotors | 107114GF |
| PRONTO | BR5401102 |
| RAYBESTOS | 66443, 66443FZN, 66443PER, 66443R, 66443R2 |
| Raybestos Brakes | 66443, 66443FZN, 66443PER, 66443R |
| WAGNER | BD125405, BD125405E |
CENTRIC 120.61041 Fits Vehicles
- Ford Mustang (1994-2004)
