RAYBESTOS 66443 Part Description
Manufacturer
Product Description

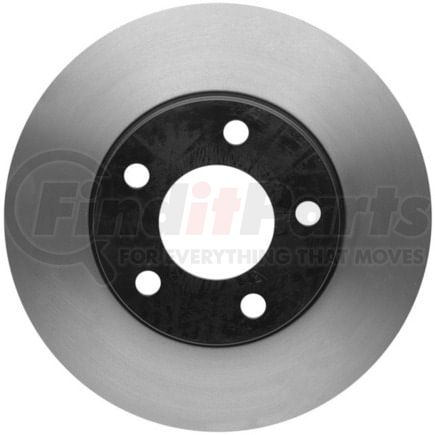

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004-1994 Ford Mustang Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 66443 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.8 IN |
| Center Hole Diameter | 71.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.974 IN |
| Discard Thickness | 24.75 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.025 IN |
| Nominal Thickness | 26.05 MM |
| Outside Diameter | 10.865 IN |
| Outside Diameter | 275.95 MM |
| Overall Height | 1.83 IN |
| Overall Height | 46.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999676948 |
RAYBESTOS 66443 Cross References
| Brand | Part Number |
|---|---|
| 24903490, 30999676948 | |
| ADVANCE AUTO PARTS | 141911, YH141911, YH141911C, YH141911P |
| AMERICAN REMANUFACTURED | 789-34041, 89-34041 |
| AUTOPART INTERNATIONAL | 25471 |
| AUTOSPECIALTY | AR8141, AR8141E |
| AUTOXTRA | 125405, AX54011 |
| AUTOZONE | 54011, 54011B, 54011DG, DL54011 |
| BENDIX | 141911 |
| BOSCH | RBR54011 |
| BRAKE HEADQUARTERS | BR54612 |
| BRAKEBEST | 20010327, 66443, 66443FZN, 66443PER, 66443R, 66443RGS, 81-125405, BD125405 |
| BREMBO | 09.8263.85, 27110, A-6032, 09.D449.11 |
| BrakeBest | 66444RGS, 66445RGS, 76446RGS |
| CALIFORNIA DRUM & ROTOR | 125405 |
| CENTRIC | 120.61041, 120.61041CRY, 121.61041, 125.61041, 125.61041CRY, 126.61041CSL, 126.61041CSR, 126.61041SL, 126.61041SR, 127.61041CL, 127.61041CR, 127.61041L, 127.61041R, 128.61041CL, 128.61041CR, 128.61041L, 128.61041R, 227.61041L, 227.61041R, 228.61041DL, 228.61041DR, 320.61041, 320.61041F, 321.61041 |
| CONTINENTAL-CONTITECH | CW26713 |
| Casting Numbers | 210537-C, 325194, 4530, 540101 |
| Centric Parts | 120.61041, 120.61041CRY, 121.61041, 125.61041, 125.61041CRY, 126.61041CSL, 126.61041CSR, 126.61041SL, 126.61041SR, 127.61041CL, 127.61041CR, 127.61041L, 127.61041R, 128.61041CL, 128.61041CR, 128.61041L, 128.61041R, 227.61041L, 227.61041R, 228.61041DL, 228.61041DR, 320.61041, 320.61041F, 321.61041 |
| DELPHI | RB364 |
| DURA CORP | BR54011, BR5401102 |
| DuraGo | BR54011 |
| EIS BRAKES | D17680 |
| EUROROTOR | 54110 |
| FORD | F4ZZ1125A |
| GREN | 646002 |
| GUARDIAN | 52-125405 |
| MAGMA PRODUCTS | PSR203054 |
| MIDAS | BR1925 |
| MIGHTY DISTRIBUTING SYSTEM | 54011 |
| MONROE BRAKES | BD125405 |
| MOTORCRAFT | BRR54 |
| Motorcraft | NBRR44 |
| NEOTEK | 107114GF |
| NEWTEK AUTOMOTIVE | 54011 |
| Newtek Automotive USA | 54011 |
| PARTS MASTER | P125405 |
| POWERSTOP | AR8141EVC |
| PROMAX | 14-54011 |
| PRONTO | BR54011 |
| QUALIS | 54011 |
| QUALITEE INTERNATIONAL | 64-92-770 |
| QUALITY BRAND | 54011, Q4023 |
| STANDARD ROTORS AND DRUMS | 54011 |
| THE UNIVERSAL GROUP | 102140 |
| TRUSTAR | 492770, R92770 |
| TopNotch | TN66443GEO |
| UAP | 2054011, 54011 |
| Universal | 102140 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50996 |
| WABCO | PS125405 |
| WABCO - Archived | PS125405 |
| WAGNER | BD125405, BD125405E |
| WAGNER BRAKE | BD125405, BD125405E |
| WINHERE | 442322, YH2322 |
| WORLDPAC | 1407-25471 |
RAYBESTOS 66443 Fits Vehicles
- Ford Mustang (1994-2004)
