(888) 312-8812 Login SignupCENTRIC 120.40066 Premium Brake Rotor
Tap to view 1 more
$102.76
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.40066 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

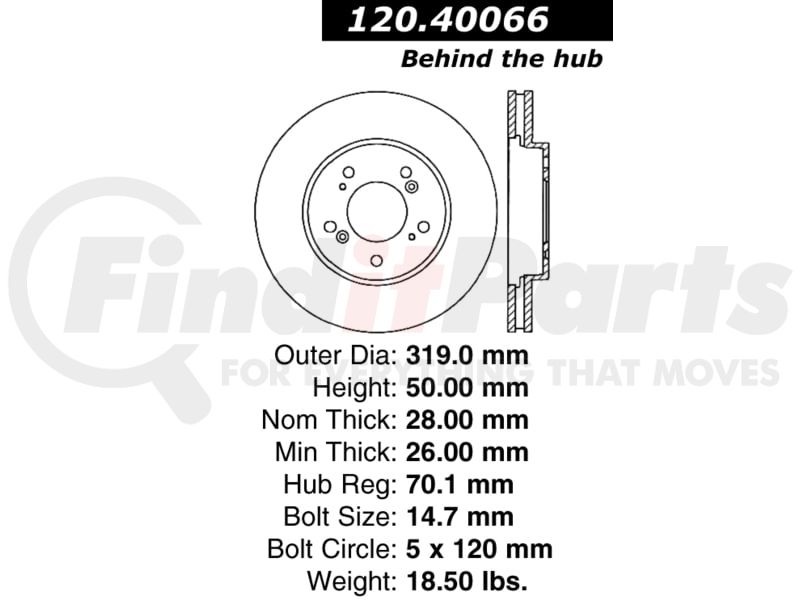

CENTRIC 120.40066 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 18.500 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 8.410 |
| Misc Holes [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Stud/Lug Hole Diameter | 0.579 IN |
| Stud/Lug Hole Diameter | 14.700 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Center Hole Diameter | 70.100 MM |
| Center Hole Diameter | 2.760 IN |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 12.559 IN |
| Outside Diameter | 319.000 MM |
| Overall Height | 1.969 IN |
| Overall Height | 50.000 MM |
| Hat Finish | Painted |
| Nominal Thickness | 28.000 MM |
| Nominal Thickness | 1.102 IN |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26.000 MM |
CENTRIC 120.40066 Cross References
CENTRIC 120.40066 Fits Vehicles
- Acura RL (2005-2012)
