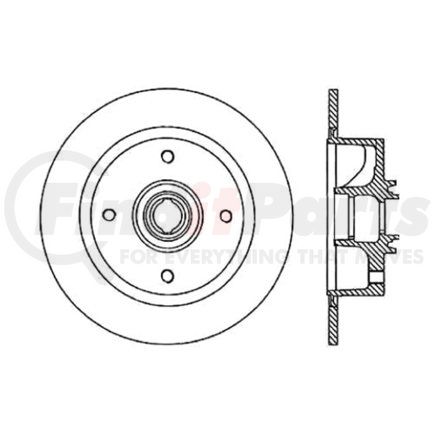

CENTRIC 120.33006 Part Description
Manufacturer
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.33006 Specifications
Product Attributes
| Weight [cntrc] Kgs | 7.370 |
| Inner Bearing # [cntrc] | 410.91015 |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Inner Seal # [cntrc] | 417.90004 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Weight [cntrc] Lbs | 16.210 |
| Outer Bearing # [cntrc] | 410.91001 |
| Discard Thickness | 9.900 MM |
| Discard Thickness | 0.390 IN |
| Nominal Thickness | 11.000 MM |
| Nominal Thickness | 0.433 IN |
| Hat Finish | Coated |
| Overall Height | 92.000 MM |
| Overall Height | 3.622 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 11.063 in |
| Rotor Outside Diameter | 281.000 MM |
| Solid Or Vented Type Rotor | Solid |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 78.300 MM |
| Center Hole Diameter | 3.083 IN |
| Mounting Bolt Hole Circle Diameter | 130.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Mounting Bolt Hole Diameter | 14.000 MM |
| Stud/Lug Hole Quantity | 4 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890033394 |
CENTRIC 120.33006 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 9082, 9082R |
| N/A | 0831970, 85632, 3412, 3412G, 411407075A, 411407075B, 411407075BA, PRT1094, 141094, 135250, 4885632, 8982005, EBR052, 600.1591.00 |
CENTRIC 120.33006 Fits Vehicles
- Volkswagen 411 (1972-1973)
- Volkswagen 412 (1973-1974)
- Porsche 914 (1972-1976)
CENTRIC 120.33006 Cross References
We have 3 alternatives for the 120.33006 by CENTRIC:
CENTRIC 120.33006 Customer Reviews
No reviews yet
Be the first to review this product!
