MGM BRAKES 1016019 Part Description
Manufacturer
Product Description

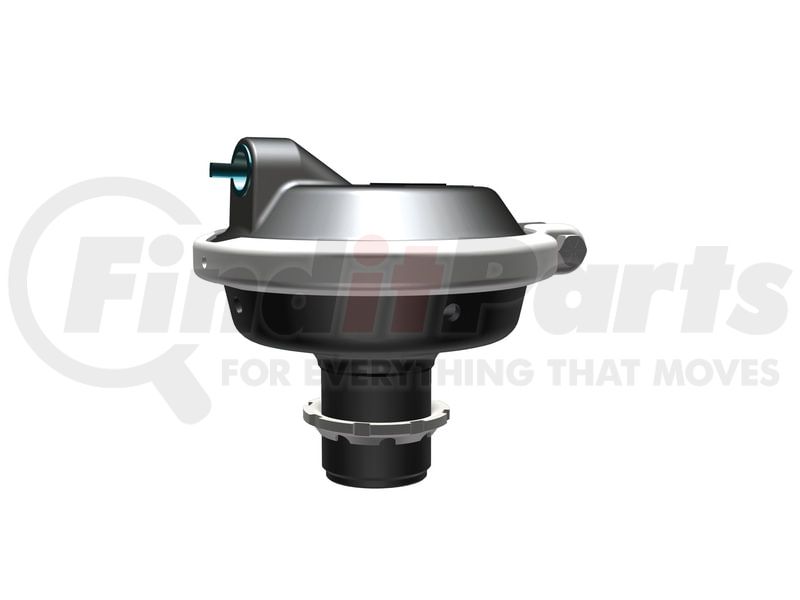

Wedge Brake Chamber
Features & Benefits
- Formed Steel Non-Pressure Chamber
- Epoxy-Coated
- Heavy Duty Nylon Reinforced Diaphragms
- Top and Side Air Ports - 3/8" NPTF
Specifications
Aftermarket Unit
Port Size: 3/8-18 NPTF
Tube Length (in.): 3.750 (BENDIX)
Stroke (in.): 1.75
Service Size: 16
Spring Size: N/A
Features & Benefits
- Formed Steel Non-Pressure Chamber -Epoxy-Coated
- Heavy Duty Nylon Reinforced Diaphragms
- Top and Side Air Ports - 3/8" NPTF
Technical Data
| Stroke | 1.75" (44.5 mm) |
| Weight lb (kg)* | 4.90 lb (2.2 kg) |
| A | 2.85" (72.4 mm) |
| B | 2.62" (66.5 mm) |
| C | 6.59" (167.4 mm) |
| E | 1 3/4" - 12 UN-2A |
| Inlets | 3/8" - 18 NPTF |
| *NOTE: | Weight will vary |
Replacement Parts
| 1 | Kit -NP Chamber - 2.25" Meritor | 9015042 |
| 1 | Kit -NP Chamber - 2.25" Bendix | 9015041 |
| 1 | Kit -NP Chamber - 2.85" Meritor | 9015044 |
| 1 | Kit -NP Chamber - 2.85" Bendix | 9015043 |
| 1 | Kit -NP Chamber - 3.75" Bendix | 9015095 |
| 1 | Kit -NP Chamber - 4.10" Meritor | 9015059 |
| 1 | Kit -NP Chamber - 6.10" Meritor | 9015096 |
| 1 | Kit -NP Chamber - 10.19" Meritor | 9015140 |
| 1 | Kit -NP Chamber - 12.00" Meritor | 9015094 |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216018 |
| 4 | Diaphragm | See Item 1 Kit |
| 5 | Kit -Push-Rod Assembly | See Item 1 Kit |
| 6 | Kit -Wedge Boot | 9004005 |
| 7 | NP Chamber Assembly | See Item 1 Kit |
| 8 | Spanner Nut | 8034001 |
| 9 | Wedge Guide -Meritor | 8024006 |
| 10 | Pressure Cap (1 inlet) | 8210001 |
| 10a | Pressure Cap (2 inlets) | 8210013 |
MGM BRAKES 1016019 Specifications
Product Attributes
| Chamber Type | Wedge Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.562 IN |
| Mounting Bolt Thread | 1 3/4-12 UN-2A |
| Port Size | 3/8-18 NPTF |
| Spring Size | N/A |
| Service Size | 16 |
| Stroke | 1.75 IN |
| Tube Length (BENDIX) | 3.750 IN |
| UNIT | Aftermarket |
| Diaphragm | Rubber |
| Push Rod Length - no yoke | - |
| Push Rod Length - with yoke | - |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013010034 |
