(888) 312-8812 Login SignupREACH COOLING 31-3597 A/C Condenser
Tap to view 3 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
REACH COOLING 31-3597 Part Description
Manufacturer
Product Description

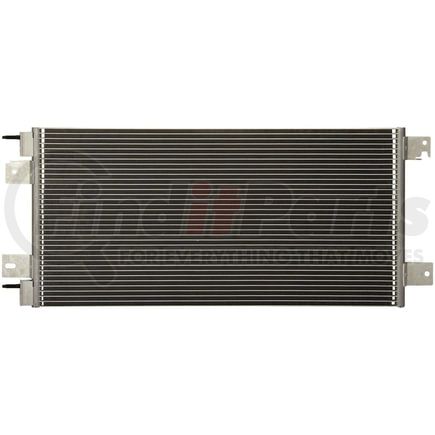

A/C Condenser
Features & Benefits
- All brackets and fittings are made with virgin aluminum to ensure purity of material and strength in brazing bond.
- All our tubes are zinc coated to better handle salt corrosion, especially for areas near the coast or with heavy snow.
- Our condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- Our condensers feature a parallel flow design to increase cooling efficiency.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our tubes feature a 5mm fin height which allows for a greater cooling surface.
- Tube-and-fin configuration strictly follows OEM design to ensure maximum heat transfer and performance during pressure drop.
No Shipping Restriction
REACH COOLING 31-3597 Specifications
Product Attributes
| Outlet Diameter | 0.61 IN |
| Core Width | 12.52 IN |
| Mounting Hardware Included | Seals and Gaskets not included |
| Core Thickness | 16 MM |
| Inlet Fitting Type | Block Fitting |
| Core Width | 318 MM |
| Core Thickness | 0.63 IN |
| Outlet Diameter | 15.5 MM |
| Inlet Diameter | 0.61 IN |
| Core Length | 655 MM |
| Inlet Diameter | 15.5 MM |
| Condenser Core Type | Parallel Flow |
| Outlet Fitting Type | Block Fitting |
| Core Material | Aluminum |
| Includes Drier | No |
| Core Length | 25.8 IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8415908045 |
| UPC | 06949521750114 |
REACH COOLING 31-3597 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 300124, 303483 |
| APC | 203597 |
| APC Inc | 203597U, 203597 |
| APDI | 7013597 |
| APDI RADS | 7013597 |
| Advance Auto Parts | 3205 |
| American Condenser by Vista-Pro | 1040558, P40558M, P40558P |
| AutoNation | 6708-00236 |
| AutoZone | 7-3597 |
| Autokool | 3597 |
| CRS | AC3765 |
| CSF | 10849 |
| Chrysler | 5191252AA, 68004052AA, 68004052AB |
| CryoMAX | 3765, 3597 |
| DPI DataPoint Inc | 3597, 3765 |
| Dixin USA | DX3597 |
| Dodge | 68004052AA, 68004052AB, 5191252AA |
| FVP | CON3597 |
| Factory Air | CON3597 |
| Federated | 3765 |
| Fisher | 7-3597, 7-3765 |
| Four Seasons | 40253 |
| Frontera | 3597AM |
| GLOBAL PARTS DISTRIBUTORS | 3597C |
| Gilmore Products | AUC3597 |
| Global Heat Transfer | 3597 |
| Jeep | 68004052AA, 68004052AB |
| Keystone Auto Industries | CND3765, CNDDPI3597 |
| Kool Vue | KVAC3765 |
| Murray Heat Transfer | 7-3597 |
| NAPA | 73597, NC3597A |
| Nissens | 940701 |
| Northern Factory Sales | 40558, CD40558 |
| Northern Radiator | CD40558 |
| OMEGA ENVIRONMENTAL TECHNOLOGIES | 24-33204 |
| OSC | 3597, 3765, 73597 |
| Omega | 2433204 |
| Omega Environmental Technologies | 2433204 |
| PACIFIC BEST INC. | PC3597P, PC3597, PC3765 |
| PACO | PL3639 |
| Partslink | CH3030237, CH3030256 |
| Performance Radiator | 3621 |
| Platinum Pro | CNDDPI3597 |
| RadCool | 3597, 3765 |
| Spectra Premium | 7-3597, 73597, 7-3765 |
| Sunbelt Radiators Inc | SBC-3597, SBC-3765 |
| TYC | 3765 |
| TYG | AM39017A |
| Tongshi | 8879145 |
| UAC | CN3765PFC, CN 3765PFC |
| UNIVERSAL AIR CONDITIONER (UAC) | CN3765PFC |
| Valeo | 814107 |
| Vision | 3765P, 3597P |
| Vista Pro | 3205 |
| Visteon | 003205, 3205 |
REACH COOLING 31-3597 Fits Vehicles
- Chrysler 200 (2011-2014)
- Jeep Patriot (2007-2017)
- Jeep Compass (2007-2017)
- Dodge Caliber (2007-2012)
