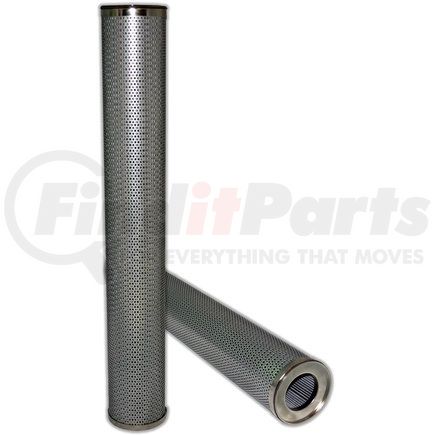

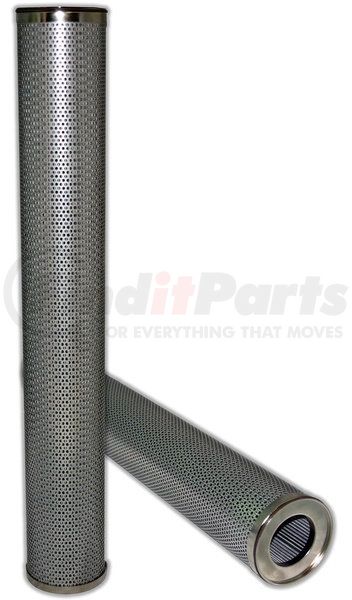

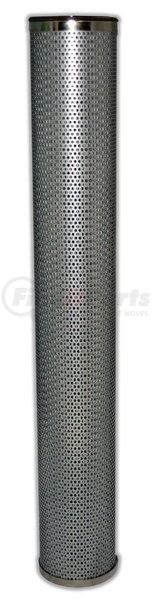

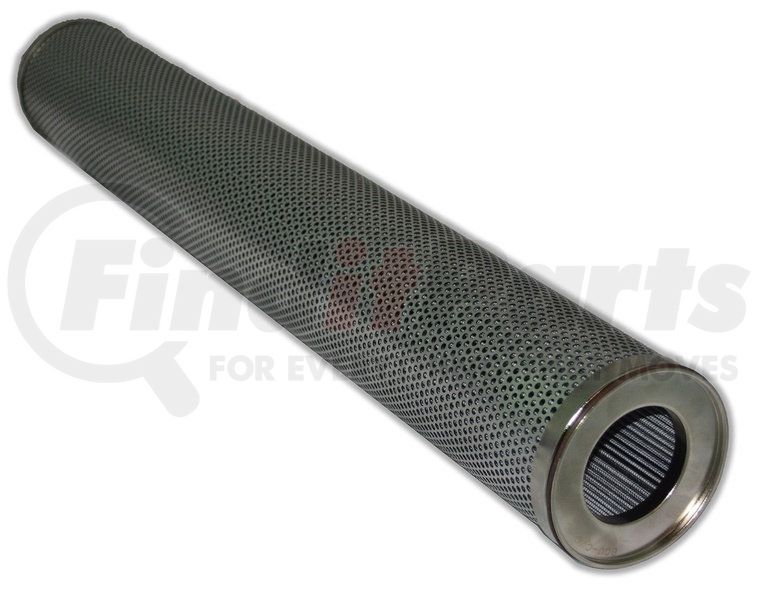

Main Filter MF0426609 - Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Inside-Out Flow
- Part Number
- MF0426609
- Manufacturer
- MAIN FILTER
- Description
-
Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Inside-Out Flow
details
$18549
MSRP: $211.48
Save: $25.99
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAIN FILTER part description
Technical Specifications
| Outside Diameter Top | 3.795 |
| Inide Diameter Top | 2.205 |
| Outside Diameter Bottom | 3.795 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 144.25819 |
| Filter Area sq in | 1949 |
| Flow Direction | Inside-Out |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Micron 1 | 3 |
Features & Benefits
- Interchange/replacement for OEM HY-PRO p/n HP65L263MB
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0426609 replaces OEM HP65L263MB by HY-PRO and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM HY-PRO p/n HP65L263MB
- All of our elements are manufactured following ISO specifications.
- Main Filter MF0426609 replaces OEM HP65L263MB by HY-PRO and is compatible in fit, form and function.
- Images may be a general representations of products
- Main Filter MF0426609 replaces OEM HP65L263MB by HY-PRO and is compatible in fit, form and function.
Features & Benefits
- Interchange/replacement for OEM HY-PRO p/n HP65L263MB
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0426609 replaces OEM HP65L263MB by HY-PRO and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Product Attributes
| Height (in.) | 25.7 |
| Handle | No |
| Outside Diameter (Top) | 3.8 in. |
| Inside Diameter (Top) | 2.21 in. |
| Bypass | No |
| Product Media | Glass |
| Collapse Pressure | 145 |
| Dust Holding Capacity | 144.26 grams |
| Fluid Type | HH / HL / HM / HV |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Wrap | Yes |
| Micron Rating | 3 |
| Flow Direction | Inside-Out |
| Outside Diameter (Bottom) | 3.8 in. |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Filter Area (sq. in.) | 1949 |
| Beta Ratio 2 | 1000/4.5 |
| Gasket Material | Viton |
| Beta Ratio 1 | 200/3 |
Part Interchanges
MAIN FILTER MF0426609 Cross Reference
We have 1 alternatives for the MF0426609 by MAIN FILTER:
