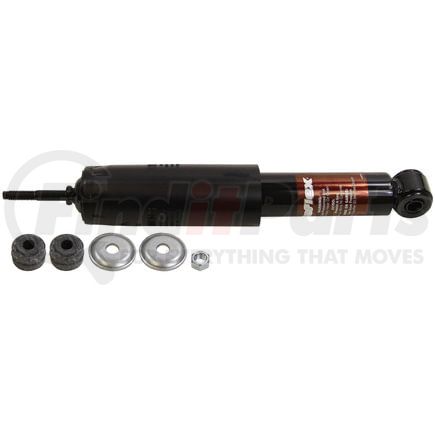

(888) 312-8812 Login SignupReflex Suspension Shock Absorber
| Lower Mount Code | LS23 |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Body Diameter | 1.574 IN |
| Compressed Length | 14.606 IN |
| Extended Length | 22.834 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/4" Sleeve OAL |
| Parts Pack(s) | P01137 |
| Travel Length | 8.228 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 371 MM |
| Extended Length | 580 MM |
| Travel Length | 209 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Diameter | 40 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS23 |
| Upper Mount Code | S4 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598216281 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| Autopart International | 2701423391 |
| KYB | 349010, 554350 |
| NAPA Shocks | 911547 |
| OEM | 4853009895 |
| PM Auto | PM6001822 |
| Rancho | RS77319 |
| Toyota | 485108Z253, 485108Z254, 4853009895, 4853009896 |
