RANCHO RS77319 Part Description
Manufacturer
Product Description
RS7MT Suspension Shock Absorber
Features & Benefits
- PRECISE HANDLING AND PERFORMANCE -- Deflective Disc Valving features digressive, linear or progressive turning based on application requirements for precision handling and performance on- and off-road
- PRECISE HANDLING AND PERFORMANCE -- Deflective Disc Valving features digressive, linear or progressive tuning based on application requirements for precision handling and performance on- and off-road
- STRONG AND DURABLE -- Features a 14mm hardened chrome piston rod to resist scuffs & corrosion, double-welded loops at stress areas, double strength closure method and hot form reserve tube
- HANDLES EXTREME TEMPERATURE CHANGES -- Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- REDUCES FADE -- Full-floating dividing piston and high-pressure nitrogen gas maintains constant pressure against the hydraulic oil, reducing aeration and shock fade
- SMOOTH PERFORMANCE -- Internal rebound bumper and shouldered rubber bushings help reduce noise, vibration and ride harshness while the PTFE-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- THE RIGHT FIT -- Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware
- KEEPS DIRT AND DEBRIS OUT -- Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the shock and contaminating the oil and destroying the internal seal eliminating the need for a dirt boot
- BUILT TO LAST -- Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling; for extra protection, purchase shock boot RS1952 or RS1961
- BOLD APPEARANCE -- Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

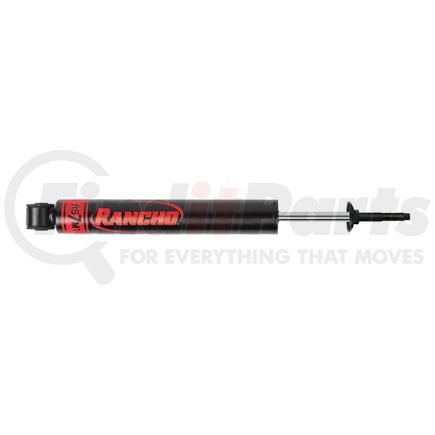

Rancho RS7MT RS77319 Shock Absorber
RANCHO RS77319 Specifications
Product Attributes
| Compressed Length | 14.61 IN |
| Travel Length | 7.83 in |
| Rod Diameter | 14 MM |
| Body Color | Black |
| Finish | Painted |
| Type | Telescopic |
| Internal Construction Type | Single Tube |
| Grade Type | Performance |
| Extended Length | 22.44 in |
| Boot Included | No |
| Gas Charged | Yes |
| Body Diameter | 1.97 IN |
| Adjustable Damping | No |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Upper Mount Code | S4 |
| Lower Mount Code | LS35 |
| Hydraulic Lockout | No |
| Shock Absorber Bore Size | 46 MM |
| Internal Rebound Bumper | Yes |
| Body Length | 14.09 IN |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/4" Sleeve OAL |
| Part Description | Shock Absorber |
| Parts Pack(s) | P01134 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 371.1 MM |
| Extended Length | 570 MM |
| Travel Length | 198.9 MM |
| Shock Stroke | 7.83 IN |
| Shock Stroke | 198.9 MM |
| Lower Mount Code | LS35 |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Mounting Hardware Included | Yes |
| Body Diameter | 50 MM |
| Cylinder Outside Diameter | 1.97 IN |
| Cylinder Outside Diameter | 50 MM |
| Body Material | Steel |
| Cylinder Material | Steel |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Rod Diameter | 0.5511811023622047 IN |
| Shaft Material | Chromed |
| Shock Absorber Bore Size | 1.8110236220472442 IN |
| Internal Rebound Spring | No |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Maximum Ride Height Lowering Distance | 0 IN |
| Maximum Ride Height Raising Distance | 0 IN |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
| Adjustable Damping | No |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Stem |
| Shaft Material | Chromed |
Additional Information
| Country of Origin (Primary) | PL |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703012263 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
RANCHO RS77319 Cross References
| Brand | Part Number |
|---|---|
| BILSTEIN | 24-186728, 33-319070 |
| Bilstein | 24186056, 24186728 |
| FOX Offroad Shocks | 98024670, 776825F7 |
| MONROE | 911547 |
| Monroe Shocks & Struts | 911547 |
| NAPA Shocks | 911547 |
| Toyota | 4853009894, 4853009895, 4853009896, 485308Z048, 485308Z077, 485308Z078 |
RANCHO RS77319 Fits Vehicles
- Toyota Tacoma (2005-2023)
RANCHO RS77319 Customer Reviews
No reviews yet
Be the first to review this product!
RANCHO RS77319 Manufacturer Information
All shocks are built to take the pressure, but not all are as tough as a Rancho®. For more than half a century, Rancho has been the leading authority on heavy duty suspension solutions for off-road applications. Rancho shocks have built-in features not found in other competing shocks, including extra-thick pistons and piston rods, multi-stage valving technology, and protective boot, for flexible performance in any terrain without compromising durability. They also offer premium lifting and leveling assemblies that are easy to install and improve ride quality significantly without extensive modifications to the vehicle. All Rancho shocks are tested and certified to comply with international quality and safety standards.
