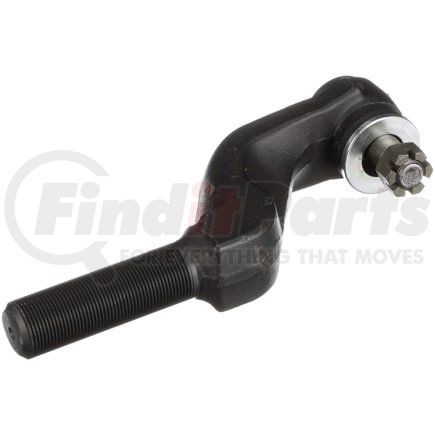

Delphi TA5892 - Tie Rod End
$15899
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 303.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 53 MM |
| Type | Bent |
| End 2 Thread Diameter | 34.88 MM |
| Housing Material | Steel |
| Tube Diameter | 53.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Cone Outside Diameter | 23.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Tapered |
| End 2 Thread Pitch | 107 MM |
| End 1 Thread Pitch | 19.01 MM |
| Length - Stud Center to End | 276.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Threads Per Inch | 16 |
| End 1 Thread Diameter | 19.01 MM |
| Shank Length | 23.00 MM |
| Stud Length | 23.00 MM |
| Mounting Hardware Included | Yes |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.906 IN |
| Stud Length | 0.906 IN |
| End 2 Thread Diameter | 1.373 IN |
| Tube Diameter | 2.090 IN |
| Cone Outside Diameter | 0.906 IN |
| Length - Stud Center to End | 10.866 IN |
| End 1 Thread Diameter | 0.748 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TW |
| UPC | 00689604345160 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- GMC B6000 (1988-1991)
- Chevrolet B60 (1988-1991)
- GMC C6000 Topkick (1990)
- GMC C5000 Topkick (1990)
- GMC C7000 Topkick (1990)
- Chevrolet C70 Kodiak (1990)
- Chevrolet C60 Kodiak (1990)
- Chevrolet C70 (1990)
- GMC C5000 (1988-1990)
- Chevrolet C5500 Kodiak (1990)
- GMC C7000 (1988-1990)
- GMC C6000 (1988-1990)
- Chevrolet C60 (1988-1990)
- Chevrolet C50 (1988-1990)
- GMC P3500 (1985-1999)
- Chevrolet P30 (1985-1999)
