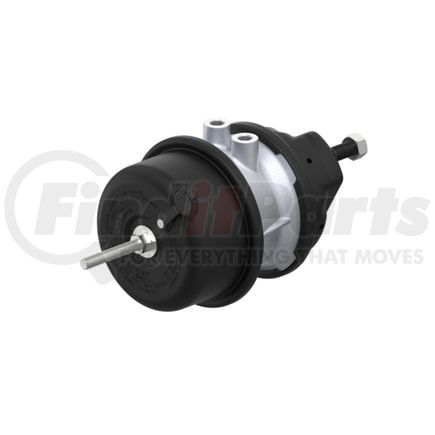

WABCO 9253840270 - Air Brake Spring Brake Actuator - Tristop Series, Double Diaphragm
$16349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
WABCO part description
Double-Diaphragm Tristop
Product Attributes
| Max. operating pressure | 145.0 psi |
| Return-Spring Force | 100 N |
| Distance between bolts | 120.6 mm |
| Weight | 15 |
| Push-Rod Length | 15 mm |
| Total Length | 318.0 mm |
| Temperature Range | -40°C to +80°C |
| Bolt Lengths | 43.0 mm |
| Release Pressure | 5.1 bar |
| Type | 16/24 |
| Port Angle | 45° |
| Port thread 12 | 3/8" - 18 NPTF |
| Version | Without boot |
| Push-rod thread | Ball R8 |
| Port thread 11 | 3/8" - 18 NPTF |
| Stroke | 57.0 mm |
| Bolt Threads | M16 x 1.5 |
| Type Of Operation | Disc |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
