(888) 312-8812 Login SignupCENTRIC 320.33069C Centric GCX HC Rotor with High Carbon Content and Partial Coating
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.33069C Part Description
Manufacturer
Product Description

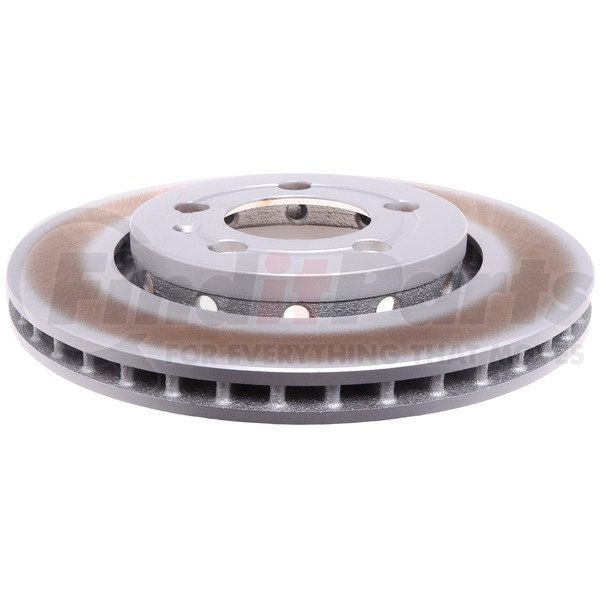

Centric GCX HC Rotor with High Carbon Content and Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.33069C Specifications
Product Attributes
| Misc Holes [cntrc] | 1 |
| Notes [cntrc] | Vented Hat |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 4.450 |
| Weight [cntrc] Lbs | 9.790 |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20.000 MM |
| Nominal Thickness | 0.862 IN |
| Nominal Thickness | 21.900 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 36.400 MM |
| Overall Height | 1.433 IN |
| Outside Diameter | 10.079 IN |
| Outside Diameter | 256.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 65.000 MM |
| Center Hole Diameter | 2.559 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.800 MM |
| Stud/Lug Hole Diameter | 0.622 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590426557 |
