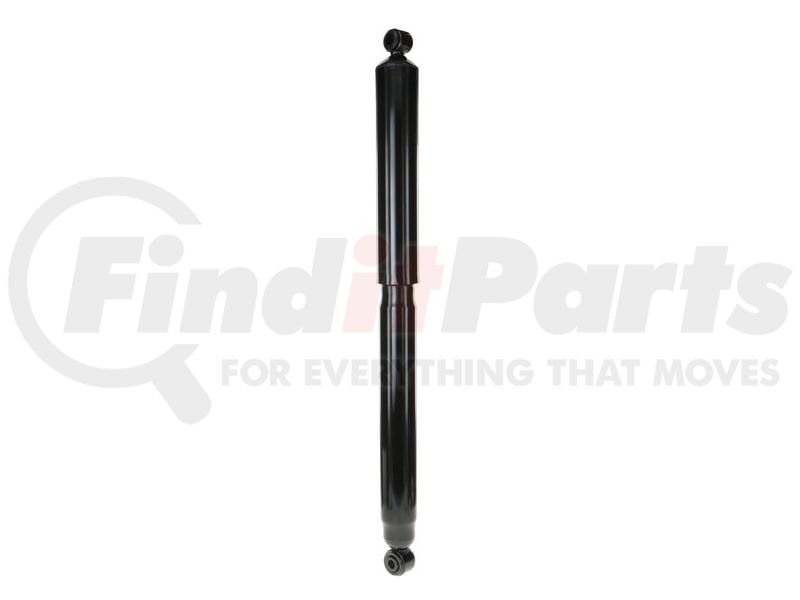

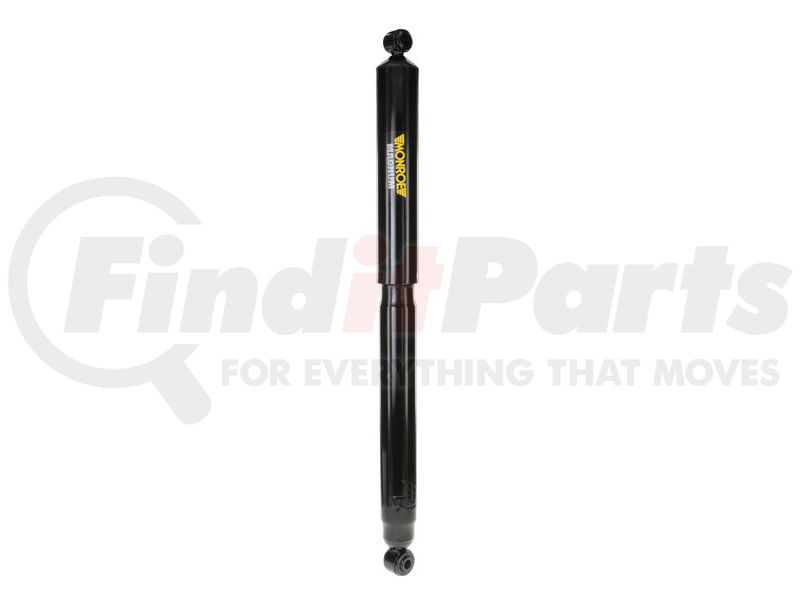

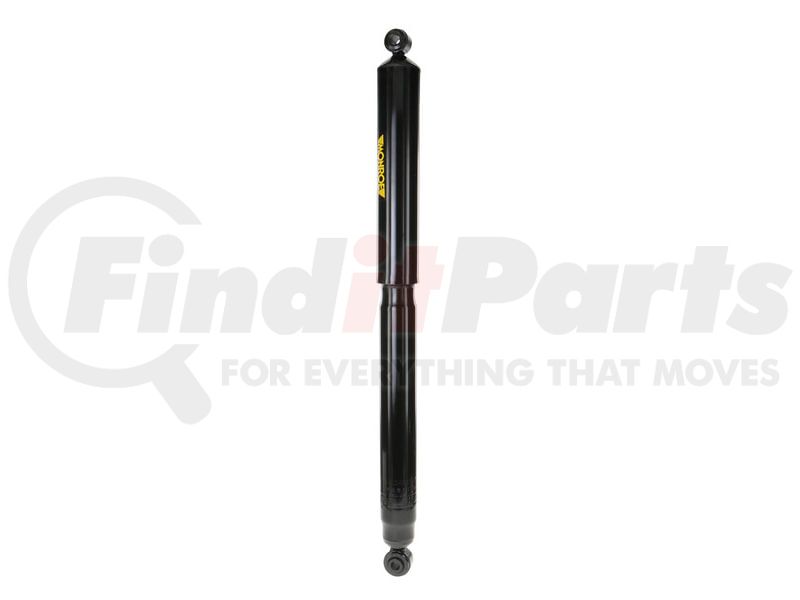

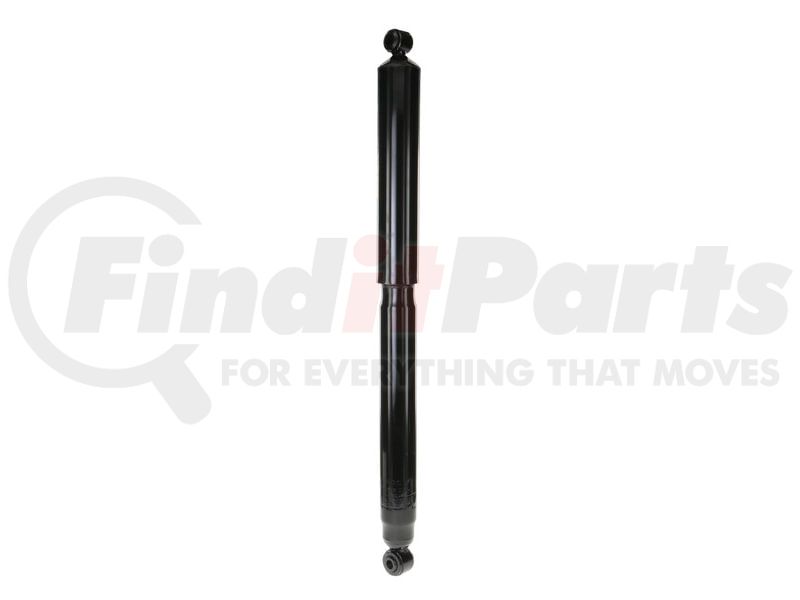

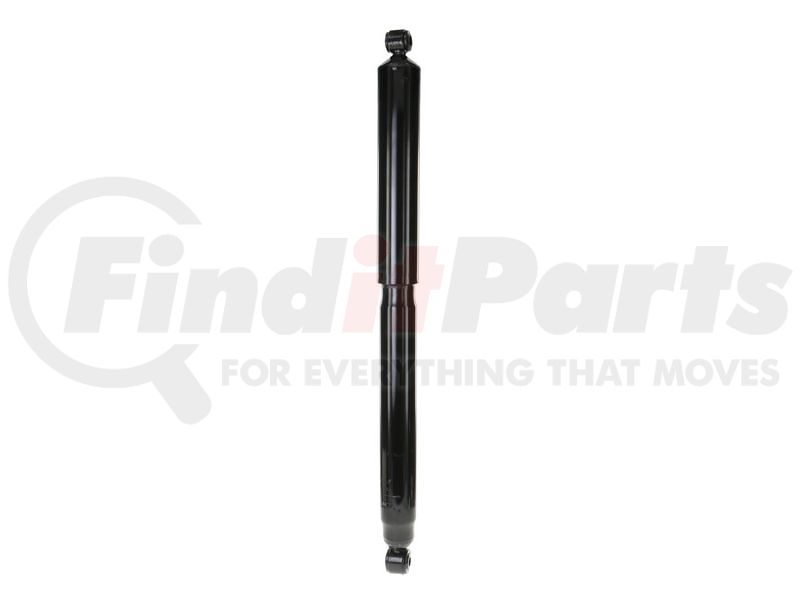

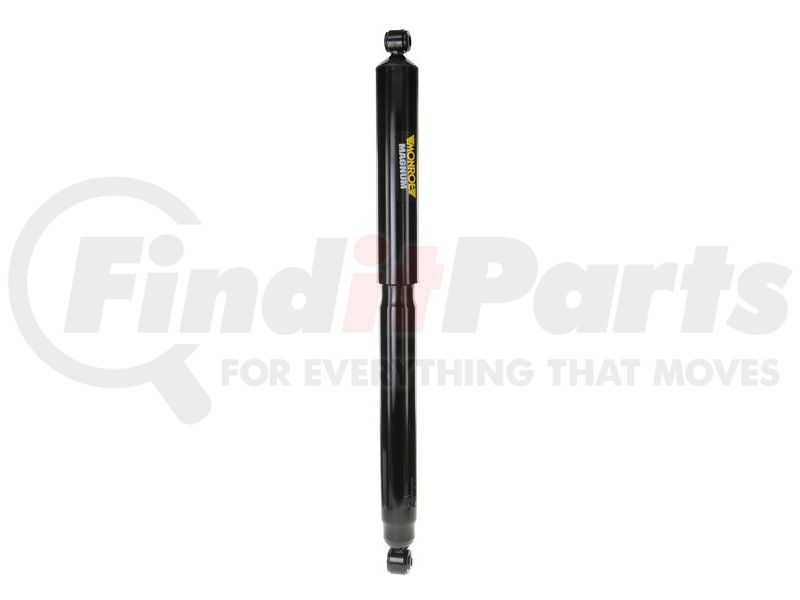

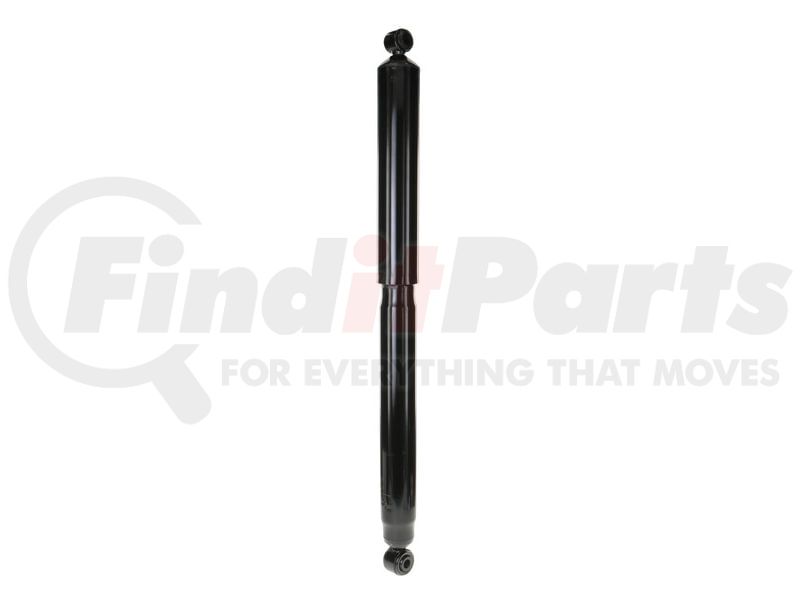

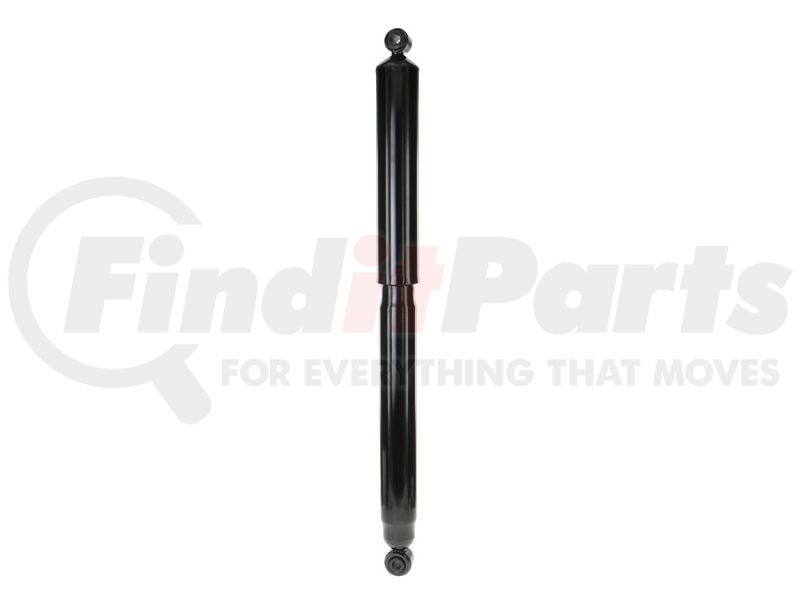

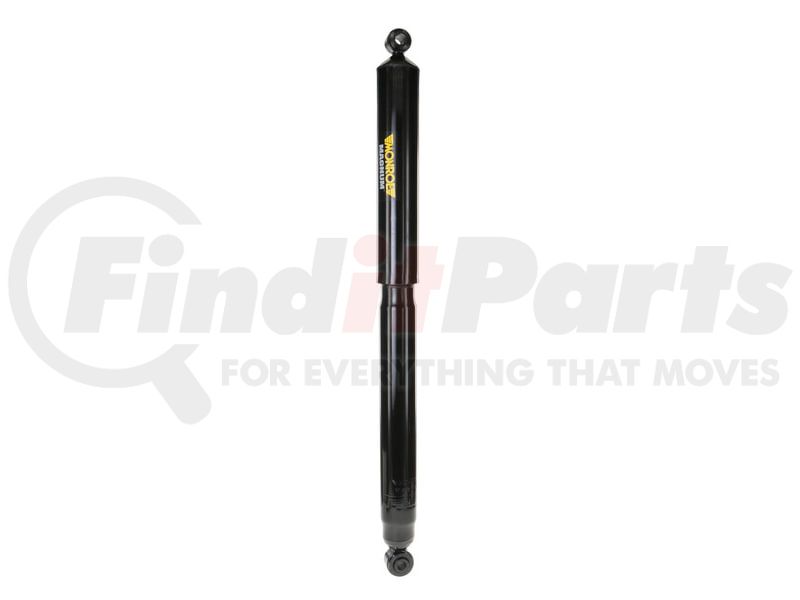

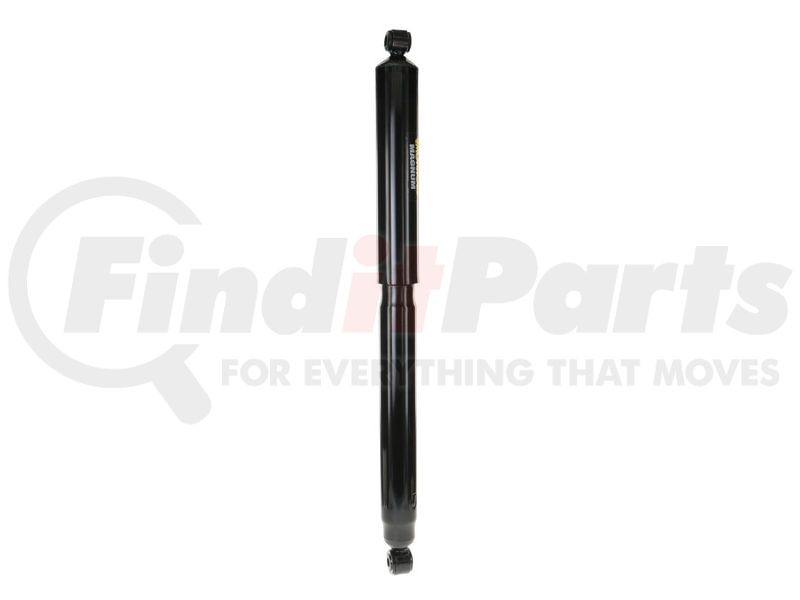

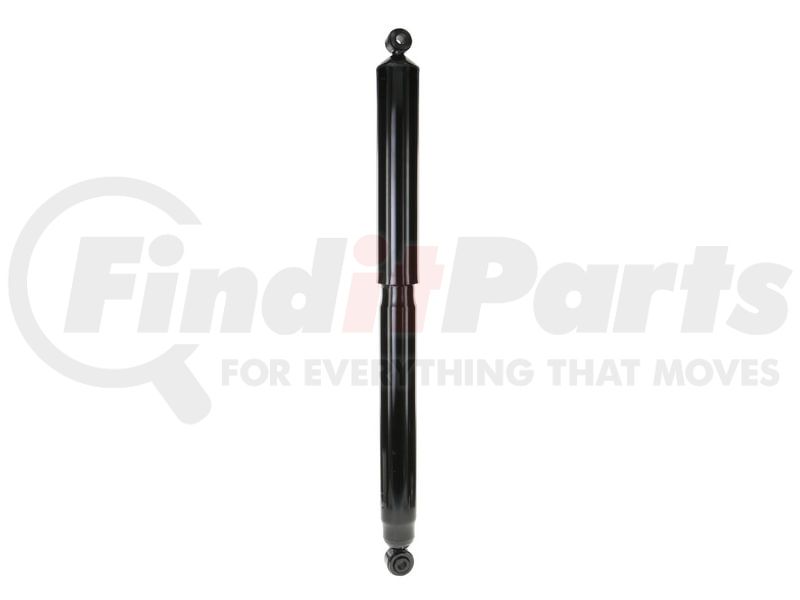

(888) 312-8812 Login SignupMONROE 550066 Magnum Severe Service Amortiguador
Tap to view 5 more
MSRP: $91.49
$6499
Save $26.50
Limited availability at this price!
In Stock
Get it by Friday, Jul 10
MONROE 550066 Part Description
Manufacturer
Features & Benefits
- ENGINEERED FOR EMERGENCY AND FLEET VEHICLES -- For hardworking first responder, municipal, fleet and jobsite vehicles and features 10-stage valving that adjusts to road extremes to help handle frequent stops, heavy loads and high miles
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- STRONG AND DURABLE -- Double welded, including arc welds up to 360-degrees, for durability while shouldered bushing and bonded bushing (on most applications) delivers quality
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (on most applications) and sintered iron piston enhance durability for longer service life
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- CONTROL AND DURABILITY – PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces for smooth operation
MONROE 550066 Specifications
Product Attributes
| Compressed Length | 18.63 IN |
| Compressed Length | 473.2 MM |
| Extended Length | 31.17 in |
| Extended Length | 791.7 MM |
| Travel Length | 12.54 in |
| Travel Length | 318.5 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.1/2" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS78 |
| Upper Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Upper Mount Code | L1 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Diameter | 2.251 IN |
| Body Diameter | 57.2 MM |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598225368 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 550066 Cross References
| Brand | Part Number |
|---|---|
| FCS | 347037, 347417, 347457, 347459 |
| FCS AUTO PARTS | 347037 |
| Ford | HC3Z18124A, HC3Z18124B, HC3Z18124C, HC3Z18124D, HC3Z18124E, HC3Z18124F, HC3Z18124G, HC3Z18124H, HC3Z18124K, HC3Z18124L, HC3Z18124M, HC3Z18124N, HC3Z18124P, HC3Z18124R, HC3Z18124S, HC3Z18124T, HC3Z18124U, HC3Z18124V, HC3Z18125A, HC3Z18125AA, HC3Z18125AB, HC3Z18125AC, HC3Z18125B, HC3Z18125C, HC3Z18125D, HC3Z18125EA, HC3Z18125G, HC3Z18125H, HC3Z18125S, HC3Z18125T, HC3Z18125U, HC3Z18125V, HC3Z18125W, HC3Z18125Y, HC3Z18125Z, LC3Z18124A, LC3Z18124N, LC3Z18124Q, LC3Z18125G, LC3Z18125S, LC3Z18125U, PC3C18080TFA, PC3C18080PGA, PC3C18080ECC, PC3C18080RCA, PC3Z18125W, PC3C18080TBA, PC3C18080RAA, PC3C18080TCA, PC3Z18125E, PC3Z18125Y, PC3C18080TAA, PC3Z18125BA, PC3C18080EAC, PC3Z18125CA, PC3Z18125K, PC3Z18125V, LC3Z18125J, LC3Z18125W, PC3C18080RDA, PC3Z18125M, PC3Z18125T, PC3Z18125R, PC3C18080TEA, PC3C18080EDC, PC3C18080TDA, HC3Z18125X, PC3Z18125FA, PC3C18080RBA, PC3Z18125X, PC3Z18125J, HC3Z18125AD, PC3Z18125U, PC3Z18125DA, PC3C18080SEA, PC3Z18125AA, PC3C18080NLA, PC3Z18125S, PC3C18080EBC, PC3C18080NHA, PC3Z18125L, PC3C18080PFA, PC3Z18125EA |
| Gabriel | 77986 |
| KYB | 554388, 5540018, 3440121, 3440163 |
| MOTORCRAFT | ASH25793, ASH25791, ASH25786, ASH25794, ASH25788, ASH25785, ASH25792, ASH25787, ASH25790, ASH25784 |
| NAPA Shocks | 550066 |
| OEM | HC3Z18125Y, HC3Z18125AC, HC3Z18125AB, HC3Z18125V, HC3Z18125W, HC3Z18125AA, HC3Z18125U, HC3Z18125Z, HC3Z18125T, HC3Z18125S |
| Rancho | RS55047A |
MONROE 550066 Fits Vehicles
- Ford F-550 Super Duty (2024-2025)
- Ford F-450 Super Duty (2017-2026)
- Ford F-350 Super Duty (2017-2026)
- Ford F-250 Super Duty (2017-2026)
