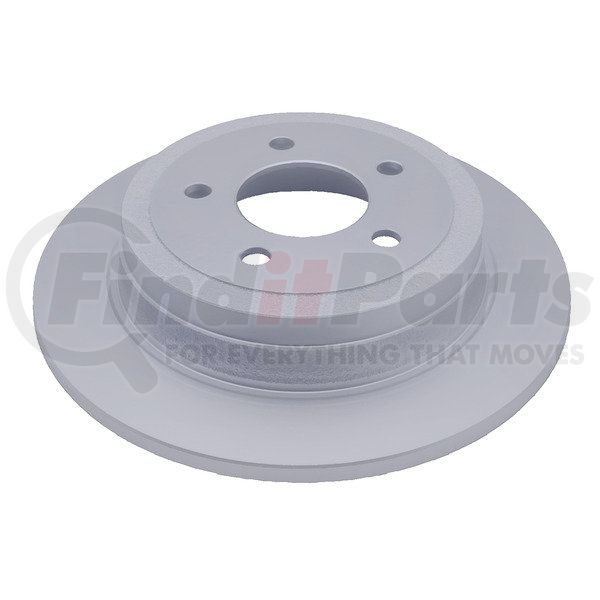

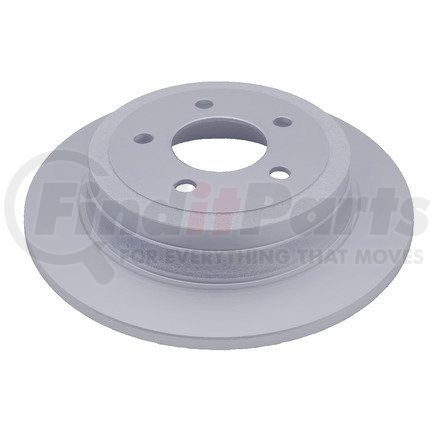

Centric 320.65096F - Centric GCX Rotor with Full Coating
$7949
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Max Pb Drum Dia [cntrc] In | 7.272 |
| Disc Mounting [cntrc] | Floating / DIH |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] Mm | 184.700 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 13.500 |
| Weight [cntrc] Kgs | 6.140 |
| Discard Thickness | 10.500 MM |
| Discard Thickness | 0.413 IN |
| Nominal Thickness | 12.000 MM |
| Nominal Thickness | 0.472 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 58.300 MM |
| Overall Height | 2.295 IN |
| Outside Diameter | 11.811 IN |
| Outside Diameter | 300.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 7.244 IN |
| Nominal Drum Diameter | 184.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 71.200 MM |
| Center Hole Diameter | 2.803 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590392906 |
Part Interchanges
CENTRIC 320.65096F Cross Reference
We have 3 alternatives for the 320.65096F by CENTRIC:
Fits Vehicles
- Ford Explorer Sport Trac (2003-2005)
- Ford Explorer Sport (2003)
California residents see Prop 65 Warning(s)
