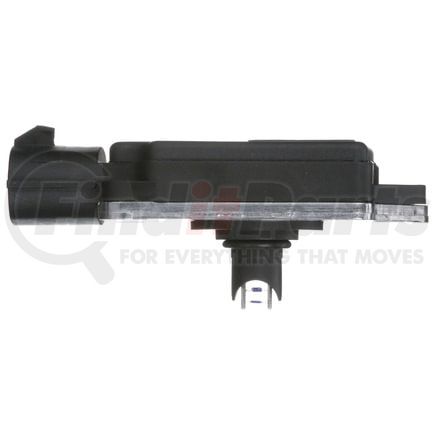

(888) 312-8812 Login SignupDELPHI AF10570 Mass Air Flow Sensor
$14499
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI AF10570 Part Description
DELPHI AF10570 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Item Grade | Standard Replacement |
| Color | Black and Silver |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 93.5 MM |
| Sensor Casing Width | 52 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 48.90 MM |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 16 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 3.6 IN |
| Sensor Casing Width | 2.0 IN |
| Bolt Hole Center To Bolt Hole Center | 1.90 IN |
| Mounting Hole Diameter | 4.5 MM |
| Seal Outside Diameter | 0.6 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604307380 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10570 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | ALFS-107RM |
| Spectra Premium | MA133 |
| Carquest | MQ7326 |
| BWD | 29129 |
| Ford | F37Z 12B579-DARM |
| Mazda | ZZM1-13-210A |
| CARDONE Reman | 74-9513 |
| Standard Motor Products | MAS0111, MF0889 |
| NAPA Reman Computers | XTP49513 |
| N/A | 245-1051 |
DELPHI AF10570 Fits Vehicles
- Mazda B3000 (1994)
- Ford Aerostar (1993-1995)
