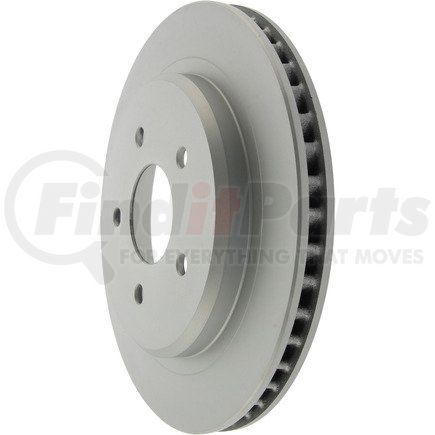

(888) 312-8812 Login SignupCENTRIC 320.62062F Centric GCX Rotor with Full Coating
Tap to view 4 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.62062F Part Description
Manufacturer
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.62062F Specifications
Product Attributes
| Vane Style [cntrc] | Pillar |
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 14.200 |
| Max Pb Drum Dia [cntrc] Mm | 190.400 |
| Max Pb Drum Dia [cntrc] In | 7.496 |
| Weight [cntrc] Kgs | 6.450 |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24.000 MM |
| Nominal Thickness | 25.900 MM |
| Nominal Thickness | 1.020 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 48.400 MM |
| Overall Height | 1.906 IN |
| Outside Diameter | 305.000 MM |
| Outside Diameter | 12.008 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 190.100 MM |
| Nominal Drum Diameter | 7.484 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.783 IN |
| Center Hole Diameter | 70.700 MM |
| Mounting Bolt Hole Circle Diameter | 120.600 MM |
| Mounting Bolt Hole Circle Diameter | 4.748 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.500 MM |
| Stud/Lug Hole Diameter | 0.531 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00889590391619 |
CENTRIC 320.62062F Cross References
CENTRIC 320.62062F Fits Vehicles
- Cadillac XLR (2004-2009)
- Chevrolet Corvette (1997-2013)
