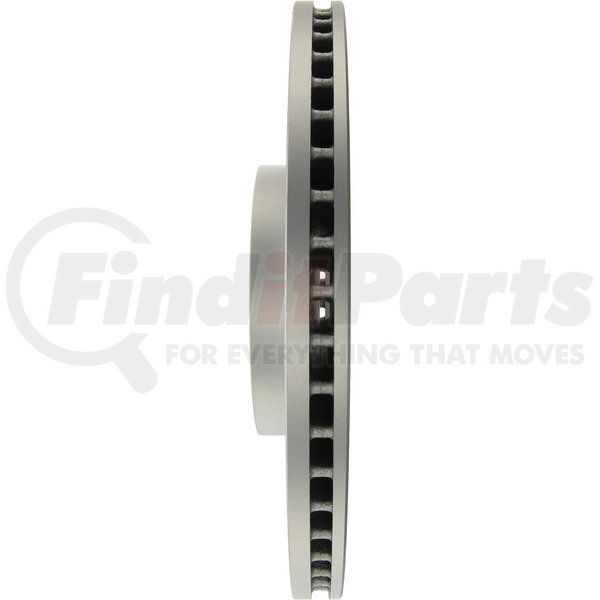

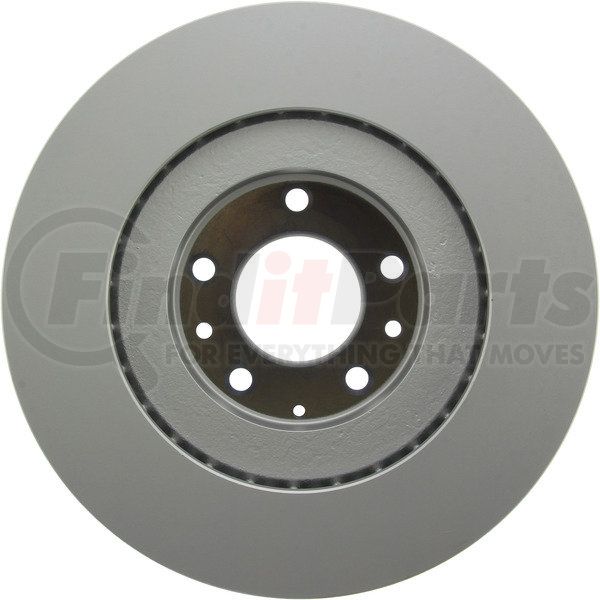

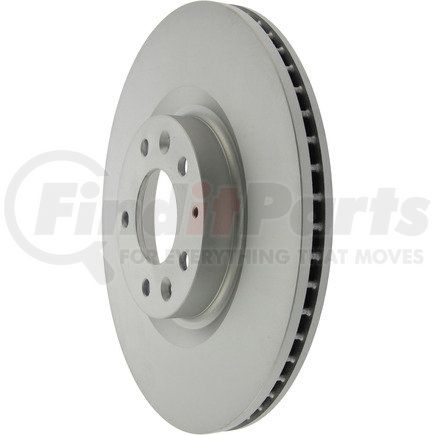

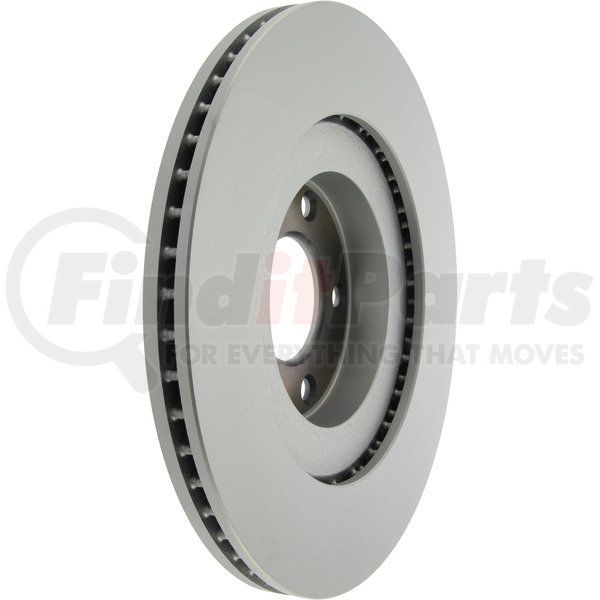

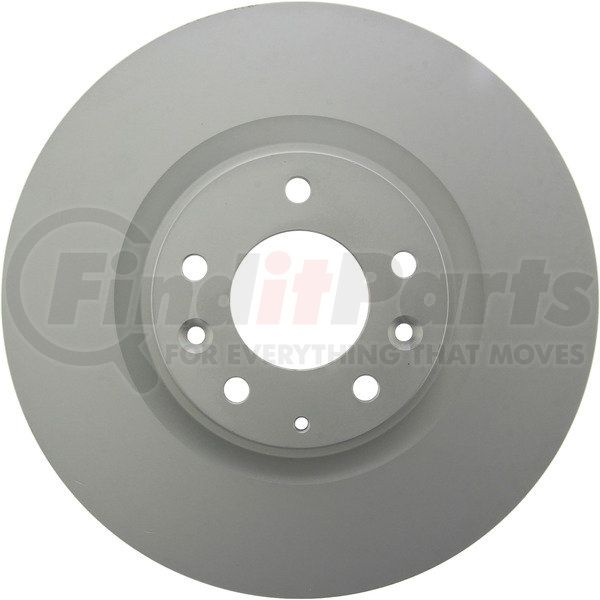

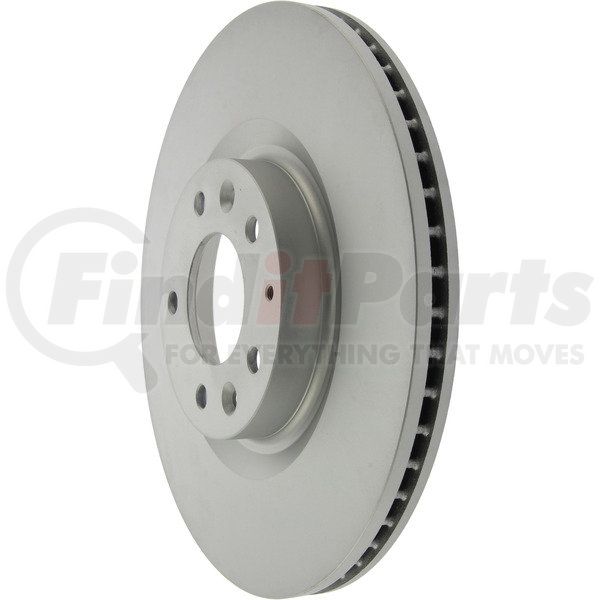

Centric 320.45071F - Centric GCX Rotor with Full Coating
$11649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 8.180 |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 18.000 |
| Misc Holes [cntrc] | 3 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 22.000 MM |
| Discard Thickness | 0.866 IN |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24.000 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 44.900 MM |
| Overall Height | 1.768 IN |
| Outside Diameter | 323.000 MM |
| Outside Diameter | 12.717 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.827 IN |
| Center Hole Diameter | 71.800 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.900 MM |
| Stud/Lug Hole Diameter | 0.508 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590390032 |
Part Interchanges
CENTRIC 320.45071F Cross Reference
We have 3 alternatives for the 320.45071F by CENTRIC:
Fits Vehicles
- Mazda RX-8 (2004-2011)
