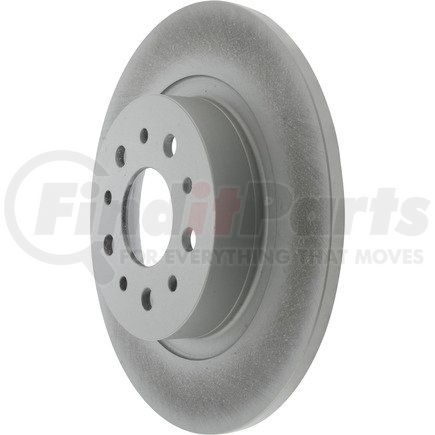

CENTRIC 320.04003 - GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
GCX Rotor with Partial Coating
Application Summary
2014 - 2019 Fiat 500L
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Centric; Centric Parts; GxC Brake; GxC Rotor; Brake Rotor
Product Attributes
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8.00 MM |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10.00 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Outside Diameter | 10.394 IN |
| Outside Diameter | 264.00 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Center Hole Diameter | 2.323 IN |
| Center Hole Diameter | 59.00 MM |
| Mounting Bolt Hole Circle Diameter | 3.858 IN |
| Mounting Bolt Hole Circle Diameter | 98.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.512 IN |
| Stud/Lug Hole Diameter | 13.00 MM |
| Disc Mounting [cntrc] | Floating |
| Hat Inside Diameter [cntrc] | 5.307 IN |
| Hat Inside Diameter [cntrc] | 134.800 MM |
| Height | 40.60 |
| Hub Hole/Whl Reg [cntrc] | 59.0 MM |
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] | 3.820 KG |
| Weight [cntrc] | 8.400 LB |
| Disc Mounting | Floating |
| Hat Inside Diameter | 5.307 IN |
| Hat Inside Diameter | 134.800 MM |
| Hub Hole Diameter | 59.0 MM |
| Misc Holes | 5 |
| Weight | 3.820 KG |
| Weight | 8.400 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00889590386356 |
Part Interchanges
CENTRIC 320.04003 Cross Reference
We have 3 alternatives for the 320.04003 by CENTRIC:
