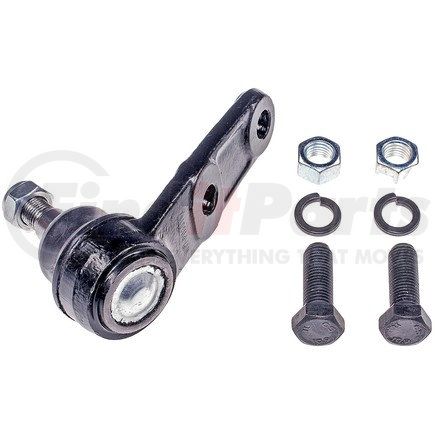

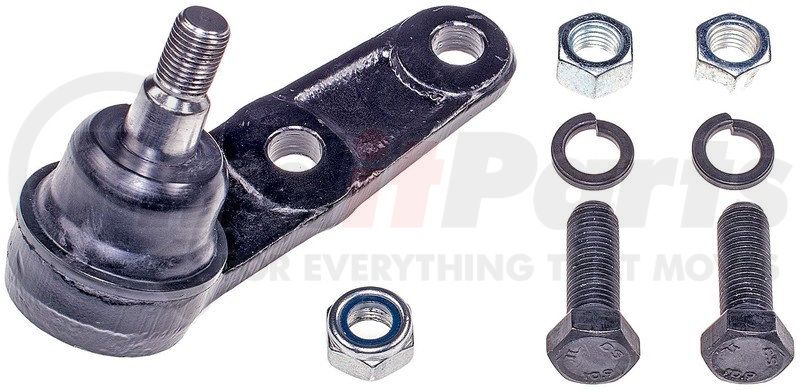

DORMAN BJ55005 Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Chevrolet 2018-04, Pontiac 2010-05, Suzuki 2010-04
Features & Benefits
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN BJ55005 Specifications
Product Attributes
| Material | Acero |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Non |
| Suspension Grade Type | Reemplazo estándar |
| Cotter Pin Hole | Non |
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 2 |
| Adjustable | Non |
| Greaseable | Non |
| Stud Type | Cónico |
| Mounting Type | Con perno |
| Dust Boot Material | Élastomère |
| Attachment Type | Cono |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Package Contents | 2 Washers |
| Thread Pitch | M1.25 |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 2 arandelas |
| Diámetro del acoplado a presión de la caja | 45mm mm |
| Housing Press Fit Diameter | 45 mm MM |
| Pernos/argollas incluidos | Sí |
| Thread Pitch | M1.25 mm |
| Stud Thread Pitch | 1.5 mm MM |
| Stud Thread Diameter | 12 mm MM |
| Paso de rosca | M1.25 MM |
| Nuts Included | Oui |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Diámetro de la rosca de la argolla | 12 mm MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00843295053128 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN BJ55005 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45D2340, 46D2340A |
| ADVANTAGE | 46D2340A |
| C-Tek | 611.62020 |
| Centric Parts | 610.62020, 611.62020 |
| DELPHI | TC6962 |
| DORMAN | 535-595 |
| Delphi | TC1501 |
| General Motors | 4570084Z00, 96535089 |
| MEVOTECH | MS50505 |
| MOOG | K500034 |
| MOOG Chassis Products | K500034 |
| Mcquay-Norris | FA2261 |
| Mevotech Original Grade | GS50505 |
| Mevotech Supreme | MS50505 |
| QUICK STEER | K500034 |
| QuickSteer | K500034 |
| SKP | SK500034 |
| SUSPENSIA | X07BJ1160 |
| SYD | 1003008, K500034 |
| Skyward Automotive Products LLC | SK500034 |
| TRW | JBJ7561 |
| XRF | K500034 |
| XRF Chassis | K500034 |
DORMAN BJ55005 Fits Vehicles
- Pontiac G3 Wave (2009)
- Pontiac Wave5 (2005-2007)
- Pontiac G3 (2007-2010)
- Suzuki Swift+ (2004-2010)
- Chevrolet Aveo5 (2006-2011)
- Chevrolet Aveo (2004-2018)
- Pontiac Wave (2005-2008)
