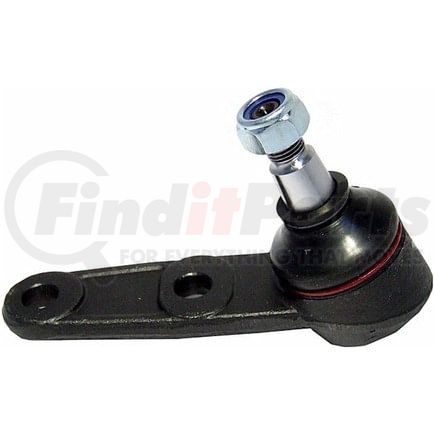

DELPHI TC1501 Ball Joint

★★★★★ (0)

$24.99

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 23
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI TC1501 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC1501 Specifications

Product Attributes

Position(s)Front Lower
Item GradeStandard Replacement
MaterialSteel
Maximum Outside Diameter2.126 IN
Maximum Outside Diameter54.00 MM
ColorGray
Stud Thread Diameter0.625 IN
Stud Thread Diameter15.875 MM
Castle Nut IncludedYes
Grease Fitting IncludedYes
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width54 MM
Cotter Pin IncludedYes
Cotter Pin HoleYes
Mounting Hardware IncludedNo
Washers IncludedNo
Height3.472 IN
Height88.20 MM
Nuts IncludedYes
Mounting Hole Quantity0
AdjustableNo
Stud Thread Length0.941 IN
Stud Thread Length23.9 MM
Stud TypeThreaded
Dust Boot MaterialRubber
Mount Plate IncludedNo
Tapered StudYes
Stud Tapered End 2 Diameter0.827 IN
Stud Tapered End 2 Diameter21 MM
Stud Tapered End 1 Diameter0.717 IN
Stud Tapered End 1 Diameter18.2 MM
Stud Threads Per Inch18
Stud Thread Pitch0.7 MM
Length54.00 MM
Length2.130 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TR
UPC00689604252864
VMRS Code016001015
UNSPSC25174203

DELPHI TC1501 Cross References

BrandPart Number
CORTECO49399169
DORMANBJ55005, BJ55005XL, 535-595
Daewoo96535089
General Motors96535089
MAS IndustriesBJ55005
MOOGK500034
MOOG Chassis ProductsK500034
MevotechMS50505
N/AGS50505, BJ55005XL, 610.6202, KBJ4185
TRWJBJ7561

DELPHI TC1501 Fits Vehicles

  • Chevrolet Aveo (2004-2011)
  • Chevrolet Aveo5 (2006-2011)
  • Pontiac G3 (2009-2010)
  • Pontiac G3 Wave (2009)
  • Pontiac Wave (2005-2008)
  • Pontiac Wave5 (2005-2007)
  • Suzuki Swift+ (2004-2010)
