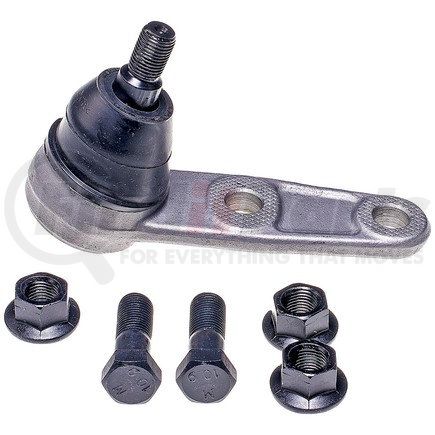

DORMAN BJ55005XL Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Chevrolet 2018-04, Pontiac 2010-05, Suzuki 2010-04
Features & Benefits
- Extended-life construction - this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN BJ55005XL Specifications
Product Attributes
| Material | Acero |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Non |
| Suspension Grade Type | Premium |
| Cotter Pin Hole | Non |
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 0 |
| Adjustable | Non |
| Greaseable | Non |
| Stud Type | Cónico |
| Mounting Type | Atornillado |
| Dust Boot Material | Policloropreno |
| Attachment Type | Cono |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Package Contents | 2 Bolts |
| Thread Pitch | M1.25 |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Housing Press Fit Diameter | 45 mm MM |
| Thread Pitch | 1.25 mm mm |
| Stud Thread Pitch | 1.5 mm MM |
| Stud Thread Diameter | 12 mm MM |
| Nuts Included | Oui |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00669810707105 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN BJ55005XL Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45D2340, 46D2340A |
| Beck/Arnley | 1017383, 101-7383 |
| Centric Parts | 610.62020 |
| Delphi | TC1501 |
| General Motors | 4570084Z00, 96535089 |
| MEVOTECH | MS50505 |
| MOOG | K500034 |
| MOOG Chassis Products | K500034 |
| Mcquay-Norris | FA2261 |
| Mevotech Original Grade | GS50505 |
| Mevotech Supreme | MS50505 |
| QuickSteer | K500034 |
| SUSPENSIA | X07BJ1160 |
| SYD | 1003008 |
| TRW | JBJ7561 |
| XRF | K500034 |
| XRF Chassis | K500034 |
DORMAN BJ55005XL Fits Vehicles
- Pontiac G3 Wave (2009)
- Pontiac Wave5 (2005-2007)
- Pontiac G3 (2007-2010)
- Chevrolet Aveo5 (2006-2011)
- Suzuki Swift+ (2004-2010)
- Pontiac Wave (2005-2008)
- Chevrolet Aveo (2004-2018)
