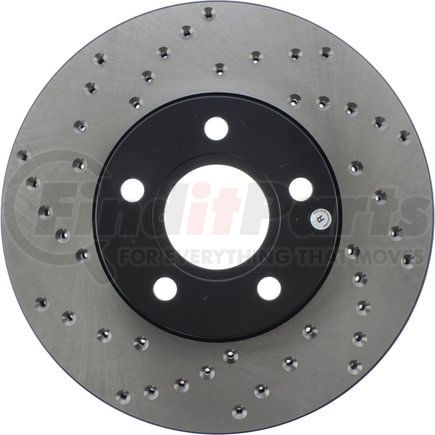

StopTech 128.61100R - StopTech Sport Cross Drilled Brake Rotor; Front Right
$21649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STOPTECH part description
Product Description
StopTech Sport Cross Drilled Brake Rotor; Front Right
Application Summary
2013 - 2019 Ford C-Max, 2012 - 2018 Ford Focus, 2012 - 2013 Volvo C30, 2004 - 2012 Volvo S40
Features & Benefits
- Premium e-coated rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Drilled for increased bite; improved looks and better performance
Sport Drilled Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor; Stoptech Drilled/Slotted Rotor
Product Attributes
| Discard Thickness | 23.000 MM |
| Nominal Thickness | 25.100 MM |
| Hat Finish | Coated |
| Overall Height | 48.800 MM |
| Outside Diameter | 277.800 MM |
| ABS Tone Ring Included | No |
| Surface Type | X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 63.600 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.700 MM |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] In | 5.492 |
| Hat Id [cntrc] Mm | 139.500 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Pillar |
| Weight [cntrc] Kgs | 6.940 |
| Weight [cntrc] Lbs | 15.300 |
| Discard Thickness | 0.906 IN |
| Nominal Thickness | 0.988 IN |
| Center Hole Diameter | 2.504 IN |
| Disc Mounting | Floating |
| Hat Inside Diameter | 5.492 |
| Misc Holes | 0 |
| Vane Style | Pillar |
| Weight | 6.940 |
| Stud/Lug Hole Diameter | 0.539 IN |
| Overall Height | 1.921 IN |
| Outside Diameter | 10.937 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890834823 |
Fits Vehicles
- Volvo C30 (2012-2013)
- Volvo S40 (2004-2012)
- Ford C-Max (2013-2018)
- Ford Focus (2012-2018)
