StopTech 126.48011SL - StopTech Sport Slotted Brake Rotor; Front Left
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
STOPTECH part description
Product Description

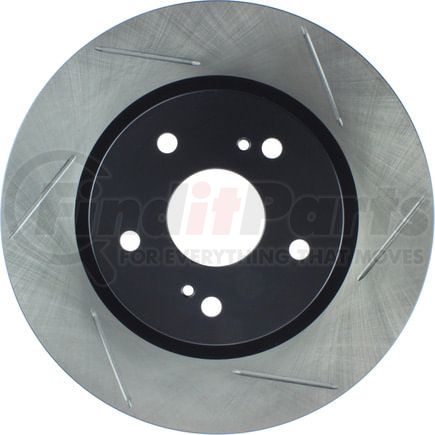

StopTech Sport Slotted Brake Rotor; Front Left
Application Summary
2006 - 2017 Suzuki Grand Vitara
Features & Benefits
- Premium e-coated rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Slotted for increased bite; improved looks and better performance
Sport Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor
Product Attributes
| Discard Thickness | 23.000 MM |
| Nominal Thickness | 0.984 IN |
| Hat Finish | Coated |
| Overall Height | 49.200 MM |
| Outside Diameter | 11.598 IN |
| ABS Tone Ring Included | No |
| Surface Type | Slotted |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 61.800 MM |
| Mounting Bolt Hole Circle Diameter | 4.488 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.700 MM |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] In | 6.055 |
| Hat Id [cntrc] Mm | 153.800 |
| Misc Holes [cntrc] | 2 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 6.860 |
| Weight [cntrc] Lbs | 15.100 |
| Overall Height | 1.937 IN |
| Outside Diameter | 294.600 MM |
| Mounting Bolt Hole Circle Diameter | 114.000 MM |
| Stud/Lug Hole Diameter | 0.500 IN |
| Disc Mounting | Floating |
| Hat Inside Diameter | 6.055 |
| Misc Holes | 2 |
| Vane Style | Straight |
| Weight | 6.860 |
| Center Hole Diameter | 2.433 IN |
| Nominal Thickness | 25.000 MM |
| Discard Thickness | 0.906 IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890740964 |
Fits Vehicles
- Suzuki Grand Vitara (2006-2013)
