BENDIX part description

Product Description

Foot Brake Valve

Features & Benefits

  • Specifically designed for use on buses, where smooth brake applications contribute to passenger comfort
  • Engineered using state-of-the-art technology for superior performance and reliability
  • Meets the strictest standards for exact form, fit, and function
  • Factory-tested to ensure it works just like the original unit that came with your vehicle
  • All Bendix valves are designed to enhance and improve vehicle performance

Courtesy of Bendix – All rights reserved

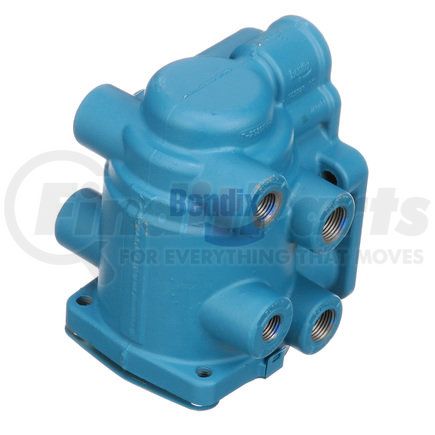

Bendix E-7 Air Brake Foot Valve

The Bendix E-7 air brake foot valve is an ideal replacement dual brake valve that is used to start the process of a brake application once you step on the brake pedal. It goes through stringent remanufacturing processes to ensure it withstands harsh operating conditions and lasts longer than the competition.

Product Attributes

Delivery Port Diameter 4 @ 3/8-18 in. NPT, 2 @ 1/2-14 in. NPT
Differential Pressure 3 PS
Exhaust Port Diameter Dust Shield
Maximum Operating Temperature 200 °F (93 °C)
Minimum Operating Temperature -40 °F (-40 °C)
Mounting Hole Diameter 5/16-18 in. UNC-3B
Mounting Hole Quantity 3
New Or Remanufactured Remanufactured
Notes Valve Only; FMVSS 121 Compliant
Port Configuration Side / Rear
Series E-7™
Supply Port Diameter 4 @ 1/4-18 in. NPT, 2 @ 1/2-14 in. NPT, 1 @ 1/8-27 in. NPT

Additional Information

Core Class 32
Core Group 31
Country of Origin (Primary) MX
Harmonized Tariff Code (HTS) 8481200070
UPC 07894294760268
VMRS Code 013010051

Part Interchanges

A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
