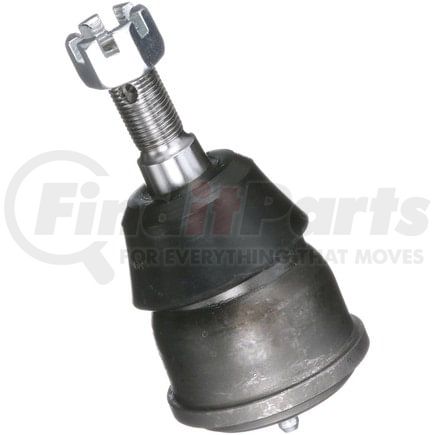

Delphi TC5404 - Ball Joint
$2799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 71 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.437 IN |
| Mounting Bolt Length | 36.50 MM |
| Washers Included | No |
| Height | 3.583 IN |
| Height | 91.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Stud Thread Length | 1.142 IN |
| Stud Thread Length | 29 MM |
| Wrench Size | 17mm |
| Distance Between Mounting Holes | 54.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolt Head Diameter | 0.669 IN |
| Mounting Bolt Head Diameter | 17.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.181 IN |
| Mounting Bolt Thread Length | 30.00 MM |
| Mounting Bolt Thread Diameter | 10.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.858 IN |
| Stud Tapered End 2 Diameter | 21.8 MM |
| Stud Tapered End 1 Diameter | 0.711 IN |
| Stud Tapered End 1 Diameter | 18.05 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.390 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604289662 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Ford Ranch Wagon (1965-1974)
- Ford Torino (1972-1976)
- Ford Ranchero (1972-1979)
- Ford Custom (1957, 1964-1972)
- Mercury Monterey (1957-1974)
- Mercury Colony Park (1959-1974)
- Lincoln Mark III (1968-1971)
- Ford Galaxie 500 (1962-1974)
- Ford Galaxie (1959-1967)
- Ford Fairlane (1957-1961)
- Ford Country Squire (1957-1974)
- Ford Country Sedan (1957-1974)
- Mercury Montego (1972-1976)
- Mercury Marquis (1967-1978)
- Mercury Grand Marquis (1975-1978)
- Mercury Cougar (1974-1979)
- Lincoln Mark V (1977-1979)
- Lincoln Mark IV (1972-1976)
- Lincoln Continental (1970-1979)
- Ford Thunderbird (1958-1979)
- Ford LTD II (1977-1979)
- Ford Gran Torino (1972-1976)
- Ford Elite (1975-1976)
- Ford Custom 500 (1964-1977)
- Ford LTD (1965-1978)
