DELPHI TC5393 Part Description
Manufacturer
Product Description

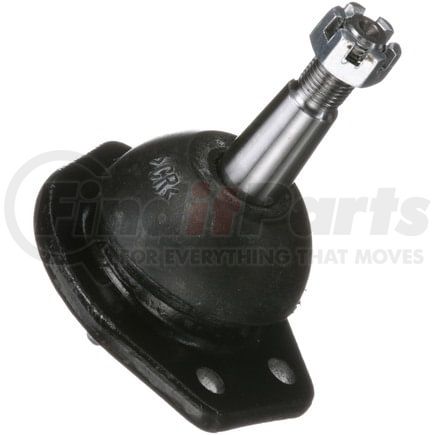

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5393 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 0.5 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 75 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 0.984 IN |
| Mounting Bolt Length | 25.00 MM |
| Washers Included | No |
| Height | 4.488 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.965 IN |
| Wrench Size | 13mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.313 IN |
| Mounting Bolt Head Diameter | 0.571 IN |
| Mounting Bolt Head Diameter | 14.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Threads Per Inch | 24 |
| Mounting Bolt Thread Length | 23.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.591 IN |
| Stud Tapered End 2 Diameter | 15 MM |
| Stud Tapered End 1 Diameter | 0.701 IN |
| Stud Tapered End 1 Diameter | 17.8 MM |
| Stud Threads Per Inch | 20 |
| Stud Thread Diameter | 12.7 MM |
| Height | 114.00 MM |
| Stud Thread Length | 24.51 MM |
| Mounting Bolt Shank Diameter | 7.95 MM |
| Mounting Bolt Thread Length | 0.910 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604290330 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC5393 Cross References
DELPHI TC5393 Fits Vehicles
- GMC PB1500 Series (1963-1965)
- GMC PB15 Series (1966)
- GMC P1000 (1966)
- Chevrolet C10 Panel (1963-1967)
- GMC PB1000 Series (1963-1966)
- GMC P15/P1500 Van (1967-1970)
- GMC Jimmy (1970)
- GMC G25/G2500 Van (1971-1972)
- GMC G15/G1500 Van (1971-1972)
- GMC C15/C1500 Suburban (1967-1970)
- GMC C15/C1500 Pickup (1967-1970)
- Chevrolet Suburban (1963-1966)
- Chevrolet P10 Van (1968-1970)
- Chevrolet P10 Series (1963-1967)
- Chevrolet G10 Van (1971-1972)
- Chevrolet G20 Van (1971-1972)
- Chevrolet C10 Suburban (1967-1970)
- Chevrolet C10 Pickup (1963-1970)
- Chevrolet Blazer (1969-1970)
