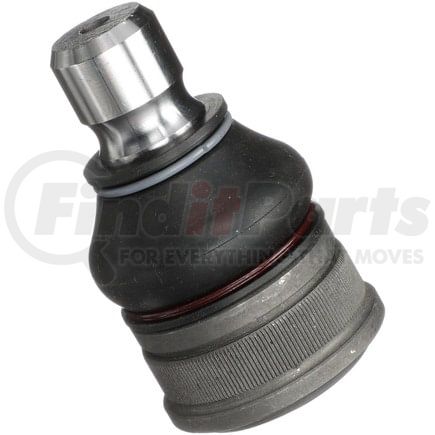

(888) 312-8812 Login SignupDELPHI TC5256 Ball Joint
Tap to view 8 more
$3399
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 24
DELPHI TC5256 Part Description
DELPHI TC5256 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Black |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 88.8 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.634 IN |
| Mounting Bolt Length | 41.50 MM |
| Washers Included | No |
| Height | 4.248 IN |
| Height | 107.90 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.906 IN |
| Stud Thread Length | 23 MM |
| Wrench Size | 16mm |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 50.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 1.047 IN |
| Mounting Bolt Head Diameter | 26.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.181 IN |
| Mounting Bolt Thread Length | 30.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.829 IN |
| Stud Tapered End 2 Diameter | 21.05 MM |
| Stud Tapered End 1 Diameter | 0.697 IN |
| Stud Tapered End 1 Diameter | 17.7 MM |
| Stud Thread Pitch | 1.5 MM |
| Stud Thread Diameter | 0.55 IN |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604287934 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5256 Part Interchanges
| Brand | Part Number |
|---|---|
| Ford | DM354500205 |
| TRW | JBJ471 |
| N/A | K500205, MS40521, BJ86265, GS40521, BJ86265PR, BJ86265XL |
DELPHI TC5256 Fits Vehicles
- Ford Edge (2007-2014)
- Lincoln MKX (2007-2015)
