DELPHI TC5080 Part Description
Manufacturer
Product Description

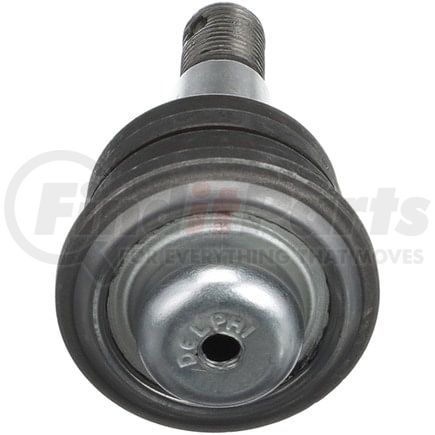

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5080 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.898 IN |
| Maximum Outside Diameter | 48.20 MM |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 48.2 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.299 IN |
| Height | 109.20 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.827 IN |
| Stud Thread Length | 21 MM |
| Wrench Size | 22mm |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.724 IN |
| Stud Tapered End 2 Diameter | 18.4 MM |
| Stud Tapered End 1 Diameter | 0.634 IN |
| Stud Tapered End 1 Diameter | 16.1 MM |
| Stud Thread Pitch | 1.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604284377 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5080 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-5219, 102-5220 |
| DORMAN | B9509, B9509PR |
| Datsun/Nissan | 5450035F11, 5450052F00, 5450135F11, 5450152F00 |
| Dorman | 520-505, 520-506, CB30418, CB30418PR |
| MAS Industries | 536-925 |
| MEVOTECH | MK9509 |
| MOOG Chassis Products | K9509, RK620552, RK620553, 102-5220 |
| Mevotech | CMS3063, CMS3064 |
| N/A | 4016035F01, MK9509, GK9509, B9509, B9509PR |
| TRW | JBJ965 |
DELPHI TC5080 Fits Vehicles
- Nissan 240SX (1989-1994)
