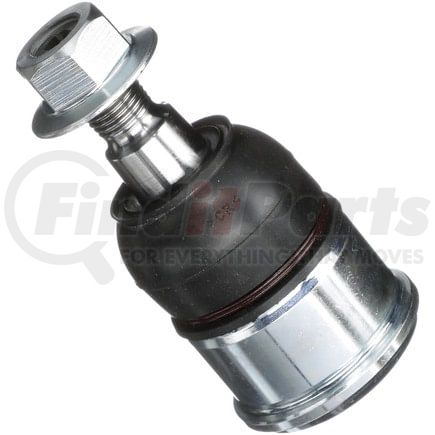

DELPHI TC5074 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5074 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.870 IN |
| Maximum Outside Diameter | 47.50 MM |
| Color | Silver |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 47.5 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.780 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.043 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.693 IN |
| Stud Tapered End 2 Diameter | 17.6 MM |
| Stud Tapered End 1 Diameter | 0.791 IN |
| Stud Tapered End 1 Diameter | 20.1 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 96.00 MM |
| Length | 3.780 IN |
| Stud Thread Diameter | 0.55 IN |
| Height | 96.01 MM |
| Stud Thread Length | 26.49 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604290019 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5074 Cross References
DELPHI TC5074 Fits Vehicles
- Acura TL (2004-2008)
