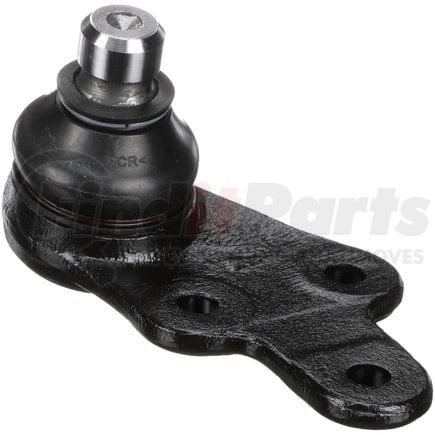

DELPHI TC3672 Ball Joint

★★★★★ (0)
Delphi TC3672 Suspension Ball Joint Ball Joint
DELPHI
Tap to view 3 more

$20.99

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 23
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI TC3672 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC3672 Specifications

Product Attributes

Item GradeStandard Replacement
Position(s)Front Right Lower
MaterialBall Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
ColorBlack
Stud Thread Diameter0.83 IN
Castle Nut IncludedNo
Grease Fitting IncludedNo
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width107.8 MM
Cotter Pin IncludedNo
Cotter Pin HoleNo
Mounting Hardware IncludedYes
Mounting Bolt Length1.535 IN
Mounting Bolt Length39.00 MM
Washers IncludedNo
Height2.827 IN
Height71.80 MM
Nuts IncludedYes
Mounting Hole Quantity3
AdjustableNo
GreaseableNo
Dust Boot MaterialRubber
Mounting Bolt Shank Diameter0.394 IN
Mounting Bolt Shank Diameter10.00 MM
Mounting Bolt Head Diameter0.878 IN
Mounting Bolt Head Diameter22.30 MM
Mounting Bolts IncludedYes
Mounting Bolt Thread Pitch1.25 MM
Mounting Bolt Thread Length1.181 IN
Mounting Bolt Thread Length30.00 MM
Mounting Bolt Thread Diameter10.00 MM
Mount Plate IncludedNo
Tapered StudNo
Stud Thread Diameter21.08 MM
Mounting Bolt Thread Diameter0.390 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TR
UPC00689604286180
VMRS Code016001015
UNSPSC25174203

DELPHI TC3672 Cross References

BrandPart Number
CORTECO49396004
Dorman523-623
FordCV6Z 3078-C, MCF2228
MAS IndustriesCB85464
MEVOTECHMS40536, TXMS40536
MOOGK500346
MOOG Chassis ProductsRK622161, K500346
N/A1723323, 8V413A423AB, 8V413A423AC, K500347, MS40536, TXMS40536, KBJ4405

DELPHI TC3672 Fits Vehicles

  • Ford Escape (2013-2019)
