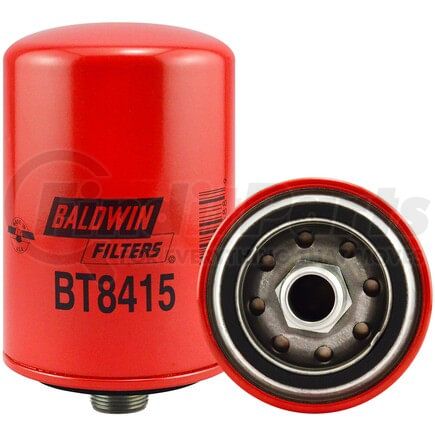

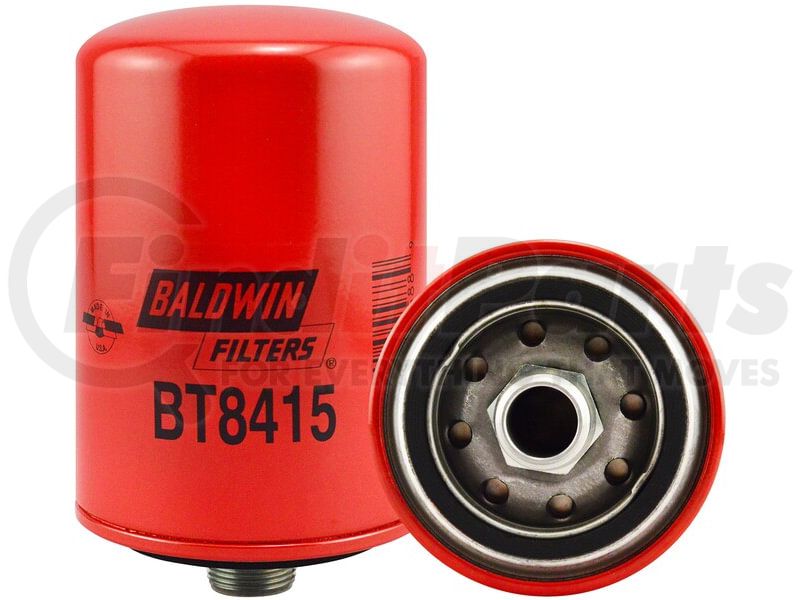

(888) 312-8812 Login SignupBALDWIN BT8415 Transmission Oil Filter - used for John Deere Equipment
MSRP: $197.63
$7299
Save $124.64
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 24
BALDWIN BT8415 Part Description
Manufacturer
Product Description
Transmission Spin-on
Application Summary
JD Equip
Features & Benefits
- Regulates oil internally for the prevention of hydraulic restriction during operation
- Incorporates a by-pass valve for continuous lubrication circulation
- Secures a stud-threaded connection for accurate mounting alignment
- Protects transmission internal assemblies against long-term wear accumulation
- Improves pressure regulation for stabilized gear engagement timing
Transmission Spin-on
Baldwin Transmission Oil Filter
Some of the best safeguards for John Deere transmission systems begin with structured oil filtration, and the Baldwin Transmission Oil Filter provides that control stage. Transmission assemblies circulating oil under load generate clutch residue and fine metallic particles that move through hydraulic passages. This spin-on filter contains a 30 PSID by-pass valve to regulate flow during restriction events, and a stud thread size of M24 x 1.5 ensures correct engagement with compatible mounting bases. Its 6 1/16 height aligns with specified housing dimensions in designated equipment. Filtering oil before it reaches hydraulic control circuits reduces abrasion and stabilizes internal pressure transitions. When hydraulic loads fluctuate during field operation, the Baldwin BT8415 helps sustain consistent lubrication flow inside the transmission assembly.
BALDWIN BT8415 Specifications
Product Attributes
| Outside Diameter 1 | 3.6875 |
| Outside Diameter 1 (mm) | 93.7 |
| Thread | 1 |
| Replaces | John Deere AT179323 |
| Per Inch | 12 |
| Contains | 30 PSID By-Pass Valve;Stud Thread: M24 x 1.5 |
| Fits | John Deere Equipment |
| Height | 6 1/16 |
| Height (mm) | 154 |
| Integral Gasket | {G401} |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421290040 |
| UPC | 00791440055889 |
BALDWIN BT8415 Cross References
| Brand | Part Number |
|---|---|
| BALBT8415, BLDBT8415 | |
| ACDELCO | PF1734 |
| BALDWIN FILTERS | BT8415 |
| BENATI | 3242004 |
| BIG A FILTER | 91201 |
| CARQUEST | 84201 |
| CHAMPION LABORATORIES | LFH8728 |
| COOPERS | HSM6183, HSM6008 |
| DONALDSON | P551757 |
| FAUN FRISCH | 7381004 |
| FLEETGUARD | HF6316 |
| FLEETRITE | HFR86316 |
| FRAM | P8552 |
| GRAINGER | 2NUX1 |
| HASTINGS | HF987 |
| HENGST | H17WD03 |
| HYDAC | 1319726 |
| JCB (J.C. BAMFORD) | 4802409 |
| JLG INDUSTRIES INC. | 1319726 |
| JOHN DEERE | AT179323 |
| KNECHT | HC10 |
| LUBER-FINER | LFH8728 |
| MAHLE | HC10 |
| MANN+HUMMEL | WD9404 |
| NAPA GOLD | 7201, 400244 |
| O&K ORENSTEIN & KOPPEL | 149940100, 1499401 |
| PUROLATOR | PER303H |
| SOPARIS | HC10 |
| UNICO | HI91444 |
| WIX | WL10244, 57201, 557201 |
| WIX FILTERS | 57201 |
| WOODGATE | WGH6316 |
| ZF | NR0750131056, 750131056, 750131032, 750131012, 501209384 |
BALDWIN BT8415 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN BT8415 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
