BALDWIN CV15000 Part Description
Manufacturer
Product Description
Crankcase Breather
Application Summary
Trucks with Cummins ISM, ISX Engines
Features & Benefits
- Filters oil mist and blow-by contaminants during crankcase ventilation system operation
- Service replacement renews breather function without replacing the complete housing
- Supports airflow through compatible heavy-duty truck engine ventilation assemblies
- Helps maintain a serviceable breather unit during scheduled maintenance intervals
Crankcase Breather

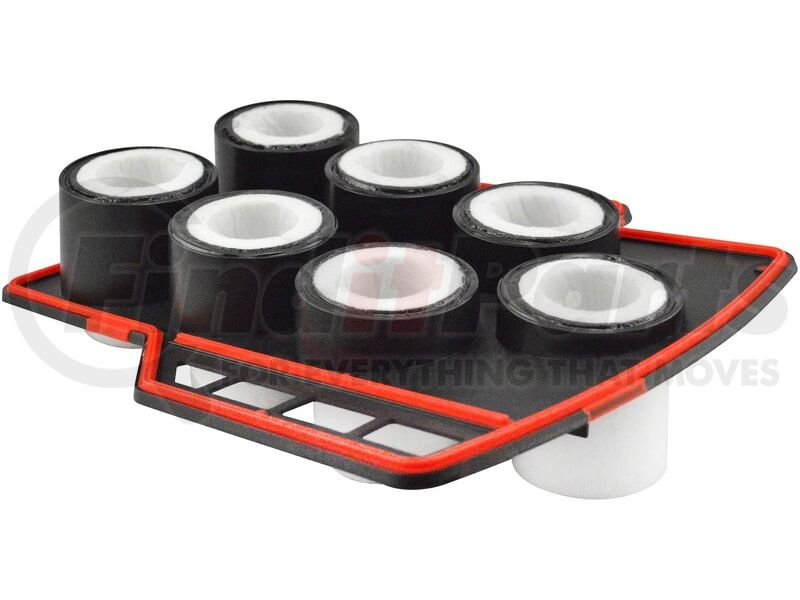

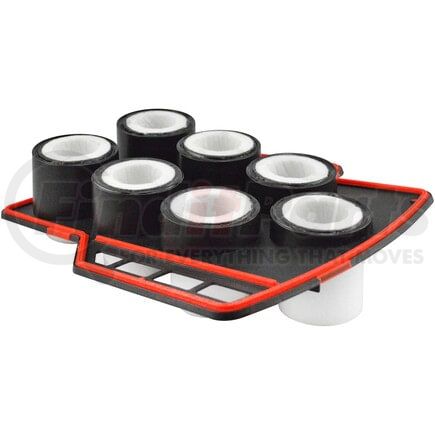

Baldwin Engine Crankcase Breather Element
Proper crankcase ventilation depends on a breather element that can continue filtering oil mist and blow-by contaminants, and the Baldwin Engine Crankcase Breather Element serves as that replacement in compatible heavy-duty truck systems. Installed within the breather assembly, it helps maintain airflow through the engine ventilation system and supports cleaner operation around the crankcase area. Because it is a service replacement element rather than a complete assembly, it allows the breather unit to be renewed without replacing the full housing. The Baldwin CV15000 fits maintenance needs where the original breather element is due for replacement and the ventilation system needs to remain serviceable for continued truck operation.
| Type | Crankcase Ventilation |
BALDWIN CV15000 Specifications
Product Attributes
| Attached Gasket | [2] Attached |
| Fits | Autocar, Cummins, Freightliner, IHC, Kenworth, Mack, Peterbilt, Volvo Trucks with Cummins ISM, ISX Engines |
| Height | 2.65625 |
| Length | 11.125 |
| Length (mm) | 282.6 |
| Replaces | Cummins 4312011, 4312013; Fleetguard CV50633, CV50634 |
| Width | 8.9375 |
| Width (mm) | 227 |
| Height (mm) | 67.5 |
| Contains | By-Pass Valve |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421310000 |
| UPC | 00791440084032 |
BALDWIN CV15000 Cross References
| Brand | Part Number |
|---|---|
| BLDCV15000 | |
| BALDWIN FILTERS | CV15000 |
| CARQUEST | 99340 |
| CUMMINS | CV5063400, CV5063300, CV50634, CV50633, CV5061700, CV50617, 391476, 3691476, 4312011, 4312013, 3685528, 3683918 |
| DORMAN | 9047904 |
| FLEETGUARD | CV50634, CV50633, CV50617, CV50607, CV50601, CV50031 |
| GRAINGER | 45VH04 |
| HASTINGS | CB57 |
| JURA (HIFI) | SAO16889, SAO16890 |
| NAPA GOLD | 220124 |
| SF-FILTER / SCHUPP | SBL88055 |
| WIRTGEN | 2225679 |
| WIX | SS10124, WS10124 |
| WIX FILTERS | WS10124 |
BALDWIN CV15000 Fits Vehicles
- Volvo VNM (2007)
- International HX620 (2017)
- Mack CL (2007)
- Peterbilt 385 (2007-2008)
- Freightliner 122SD (2013-2018)
- Kenworth K370 (2014-2017)
- Kenworth K270 (2014-2018)
- Volvo VT (2007-2008)
- International 9900ix (2004-2009)
- International 9900i (2003-2012, 2014-2018)
- International 9400 (2000)
- Volvo VNL (2011)
- International 9200 SBA (1999-2000)
- Western Star 4900SA (2002-2003, 2006-2007, 2010-2017)
- Western Star 4900FA (2002-2003, 2007, 2009, 2011-2017)
- Western Star 4900EX (2002-2003, 2005, 2009, 2011-2017)
- Peterbilt 587 (2011-2017)
- Kenworth T700 (2011-2016)
- Peterbilt 389 (2008-2018)
- Freightliner Coronado (2011-2016)
- Peterbilt 387 (2007-2011)
- Kenworth T2000 (2007-2011)
- Peterbilt 579 (2013-2018)
- Peterbilt 379 (2007)
- Kenworth T880 (2014-2018)
- Kenworth T680 (2013-2018)
- Peterbilt 388 (2008-2015)
- Peterbilt 386 (2007-2015)
- Peterbilt 367 (2008-2017)
- Kenworth T660 (2008-2018)
- Kenworth C500 (1999-2000, 2002-2015, 2018)
- International 7400 (2005)
- Peterbilt 567 (2014-2018)
- Peterbilt 320 (2007-2011)
- Peterbilt 384 (2008-2015)
- Peterbilt 365 (2008-2018)
- Peterbilt 357 (2007-2008)
- Autocar LLC. Xpeditor WXLL (2003-2008)
- Peterbilt 330 (2014-2018)
- Peterbilt 220 (2014-2018)
- Peterbilt 210 (2014-2015)
- Kenworth T270 (2014-2018)
- Autocar LLC. Xpeditor WXR (2003-2006)
- Autocar LLC. Xpeditor WX (2002-2008)
- Peterbilt 337 (2014-2018)
- Peterbilt 325 (2014-2017)
- Kenworth T370 (2014-2018)
- Kenworth T170 (2014-2018)
- Kenworth W900 (1999-2000, 2002-2018)
- Kenworth T800 (1999-2000, 2002-2018)
- Peterbilt 378 (1999-2007)
- Freightliner Cascadia (2009-2017)
- International LoneStar (2009-2012, 2014-2017)
- International 8600 TranStar (2008-2011)
- International ProStar (2008-2018)
- International WorkStar 7700 (2008-2012)
- International WorkStar 7600 (2008-2014)
- International 7700 (2005-2007)
- International 7600 (2003-2007)
- International 8600 SBA (2003-2007)
- International 9200i SBA (2000-2011)
- International 9400i SBA (2000-2011)
- International 9100 SBA (1999)
- International 5900i (2000-2012)
- International 5500i (2000-2012)
- International 5600i (2000-2012)
- International 2554 (1999-2000)
BALDWIN CV15000 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN CV15000 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
