(888) 312-8812 Login SignupRAYBESTOS 982102R Raybestos R-Line Brake Rotor
$111.15
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 982102R Part Description
Manufacturer
Product Description

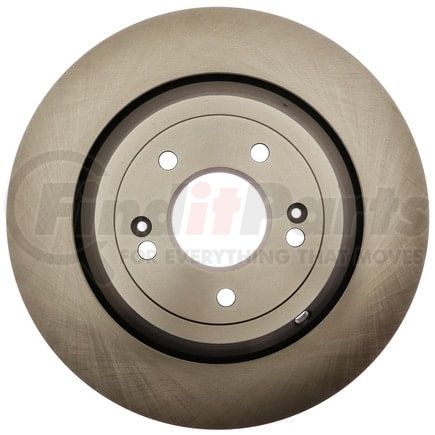

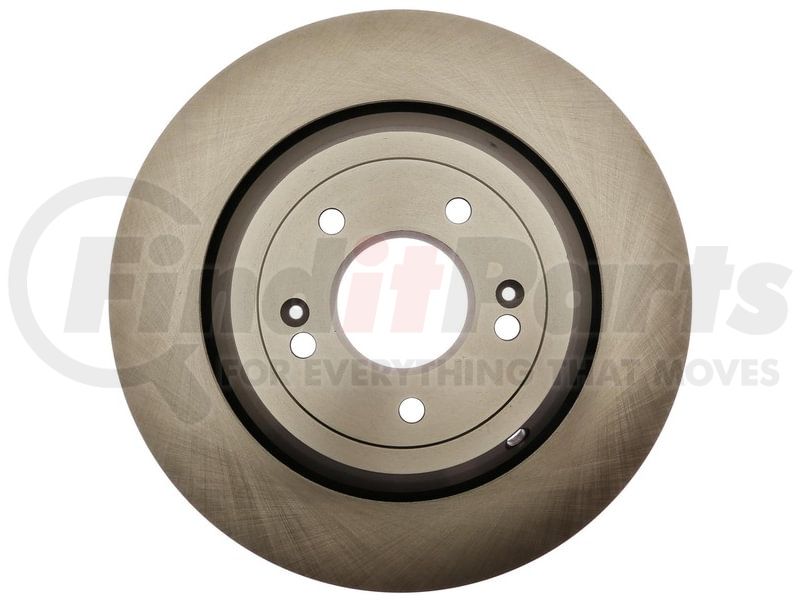

Raybestos R-Line Brake Rotor
Application Summary
2019-2017 Genesis G90 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 982102R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.717 IN |
| Center Hole Diameter | 69 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.803 IN |
| Discard Thickness | 20.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.134 IN |
| Inside Diameter | 232 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.488 IN |
| Mounting Bolt Hole Diameter | 12.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.87 IN |
| Nominal Thickness | 22.1 MM |
| Outside Diameter | 13.425 IN |
| Outside Diameter | 341 MM |
| Overall Height | 2.441 IN |
| Overall Height | 62 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.488 IN |
| Stud/Lug Hole Diameter | 12.4 MM |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213227017 |
RAYBESTOS 982102R Cross References
RAYBESTOS 982102R Fits Vehicles
- Genesis G90 (2017-2019)
