STANDARD IGNITION S2322 Part Description
Manufacturer
Product Description

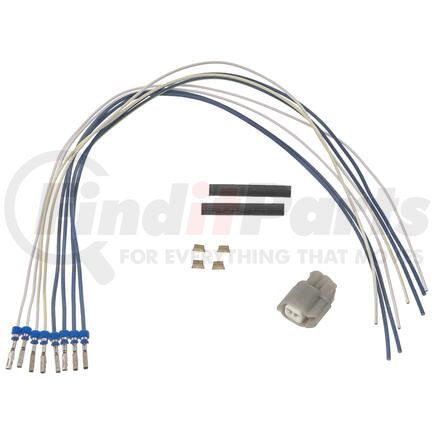

ABS Speed Sensor Connector
Features & Benefits
- Protective Tubing Included
- Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
- The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
- The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
- All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
- Offering thousands of high-quality pigtails and sockets for nearly every electrical job.
STANDARD IGNITION S2322 Specifications
Product Attributes
| Attachment Method | Push On |
| Bend Angle (Deg.) | 0 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Contact Terminal Material | Metal |
| Dust Shield Included | No |
| Length - Inches | 1.25 |
| Material | Plastic |
| Number Of Splice Connectors Includ | 2 |
| Number of Wires | 8 |
| Splice Connectors Included | Yes |
| Terminal Gender | Female |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Water Resistant | Yes |
| Weatherproof Sealed | Yes |
| Wire Gauge (ga) | 16, 20 |
| Wire Quantity | 2 |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 19.75 |
| Wiring Harness Length (mm) | 501.65 |
| Gender | Male |
| Weather Resistant | Yes |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (HTS) | 8544429090 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00033086205786 |
STANDARD IGNITION S2322 Cross References
| Brand | Part Number |
|---|---|
| Airtex | 1P2543 |
| BWD | PT2310 |
| Carquest Premium Vehicle Solutions | PTA1901 |
| Chrysler | 68040495AA |
| Echlin | EC2225 |
STANDARD IGNITION S2322 Fits Vehicles
- Ram 4000 (2013-2017)
- Ford F-350 (2011-2016)
- Lincoln MKX (2011)
- Ram 4500 (2013-2022)
- Ram 3500 (2012-2022)
- Honda Civic (2012)
- Ram 5500 (2011, 2013-2022)
- Dodge Charger (2011-2015, 2017-2022)
- Ford F-350 Super Duty (2011-2016)
- Chrysler 300 (2011-2015, 2017-2022)
- Ram 2500 (2011-2022)
- Ford F-150 (2011, 2013)
- Dodge Challenger (2011-2015, 2017-2022)
- Ford F-550 Super Duty (2011-2013)
- Ford F-450 Super Duty (2011-2013)
- Ford Ranger (2010-2011)
- Ford Edge (2011)
- Ford F-250 Super Duty (2011-2016)
- Chrysler Grand Voyager (2001-2002)
- Jeep Grand Cherokee (2005-2010)
- Jeep Commander (2006-2010)
- Dodge Grand Caravan (2001-2007)
- Dodge Caravan (2001-2007)
- Chrysler Voyager (2001-2005)
- Chrysler Town & Country (2001-2007)
