CENTRIC 320.40074 Part Description
Manufacturer
Product Description

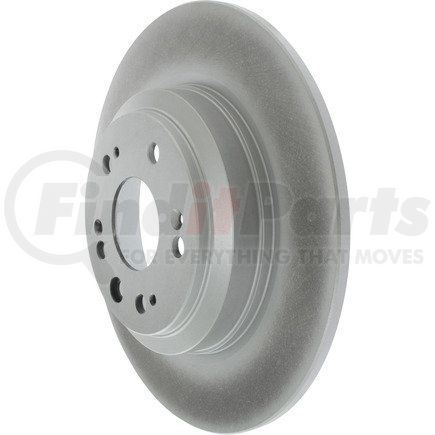

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.40074 Specifications
Product Attributes
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Kgs | 6.890 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 15.150 |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Discard Thickness | 9.000 MM |
| Discard Thickness | 0.354 IN |
| Nominal Thickness | 11.000 MM |
| Nominal Thickness | 0.433 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 60.500 MM |
| Overall Height | 2.382 IN |
| Outside Diameter | 13.150 IN |
| Outside Diameter | 334.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 190.000 MM |
| Nominal Drum Diameter | 7.480 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.760 IN |
| Center Hole Diameter | 70.100 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.700 MM |
| Stud/Lug Hole Diameter | 0.579 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590300963 |
CENTRIC 320.40074 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980739, 980739FZN, 980739R |
CENTRIC 320.40074 Cross References
We have 3 alternatives for the 320.40074 by CENTRIC:
