(888) 312-8812 Login SignupCENTRIC 320.58005 Centric GCX Rotor with Partial Coating
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.58005 Part Description
Manufacturer
Product Description

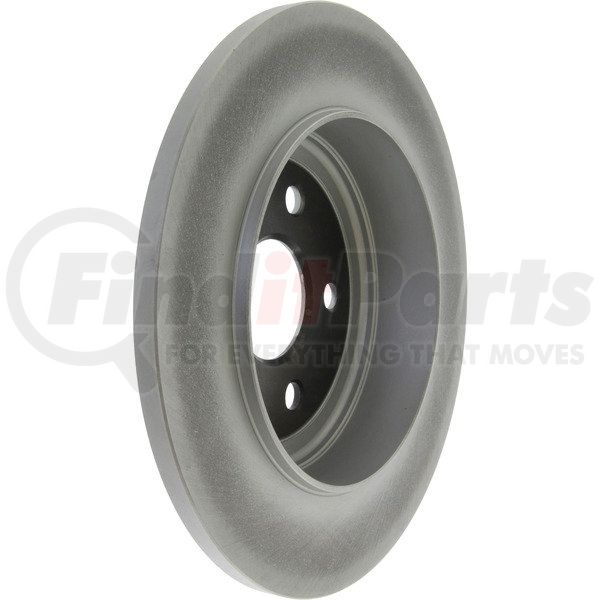

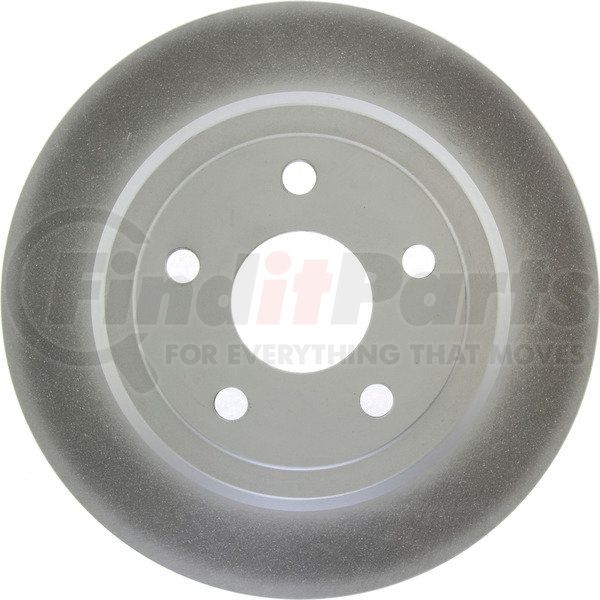

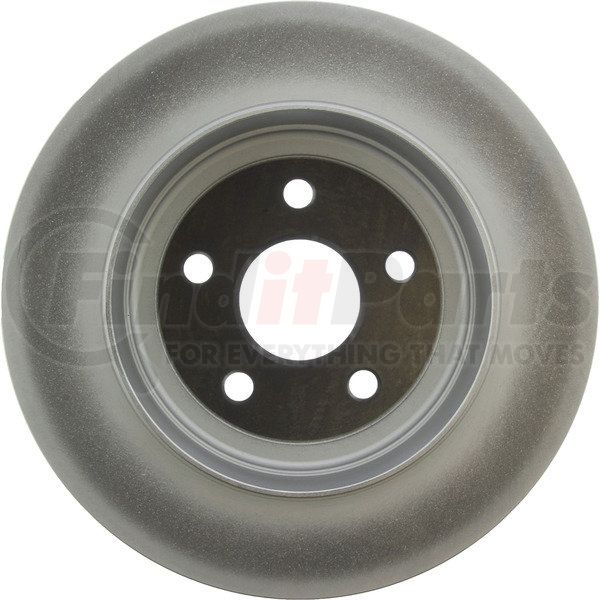

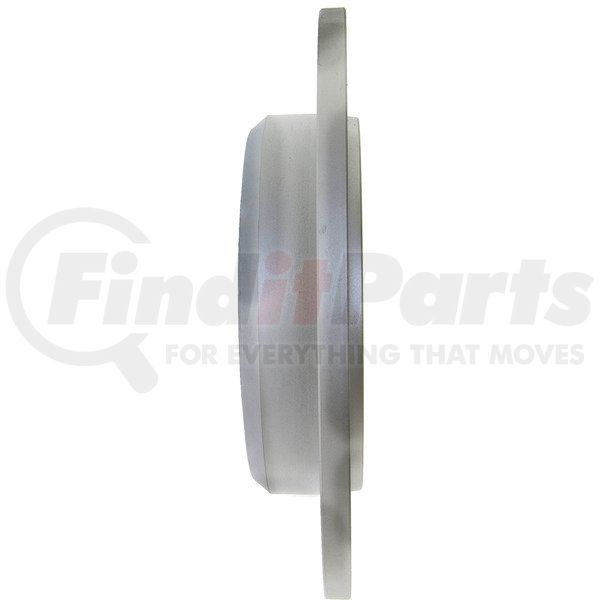

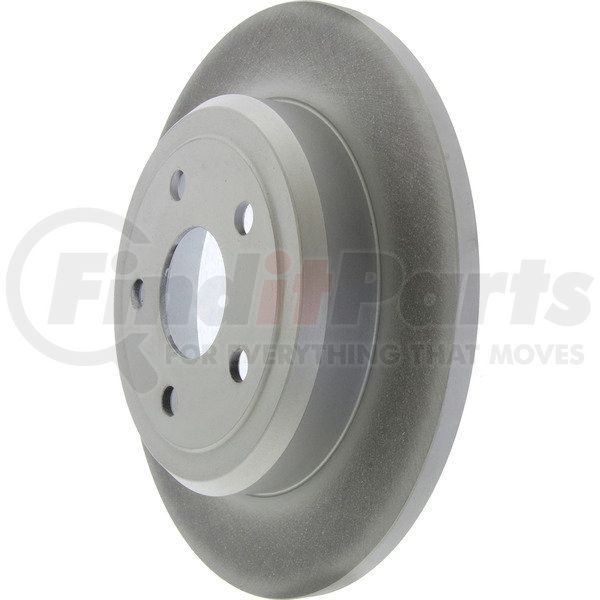

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.58005 Specifications
Product Attributes
| Weight [cntrc] Lbs | 18.700 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 8.500 |
| Hat Id [cntrc] Mm | 205.700 |
| Hat Id [cntrc] In | 8.098 |
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 12.500 MM |
| Discard Thickness | 0.492 IN |
| Nominal Thickness | 14.000 MM |
| Nominal Thickness | 0.551 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 63.700 MM |
| Overall Height | 2.508 IN |
| Outside Diameter | 330.000 MM |
| Outside Diameter | 12.992 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 2.835 IN |
| Center Hole Diameter | 72.000 MM |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 17.000 MM |
| Stud/Lug Hole Diameter | 0.669 IN |
Additional Information
| Country of Origin (Primary) | CN |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590301618 |
CENTRIC 320.58005 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 780867, 780867FZN, 780867R |
CENTRIC 320.58005 Cross References
We have 3 alternatives for the 320.58005 by CENTRIC:
