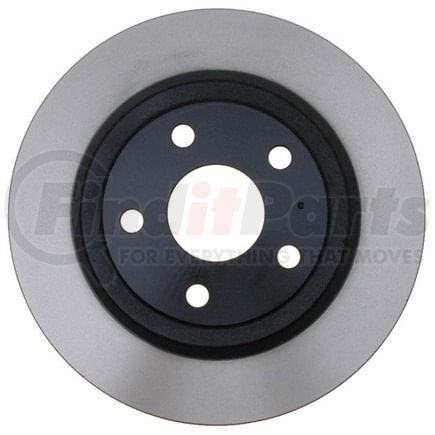

(888) 312-8812 Login SignupRAYBESTOS 780867 DISC BRK ROTOR
$12499
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 2
RAYBESTOS 780867 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2020-2011 Jeep Grand Cherokee Rear, 2020-2011 Dodge Durango Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 780867 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.84 IN |
| Center Hole Diameter | 72.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.492 IN |
| Discard Thickness | 12.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.622 IN |
| Inside Diameter | 219 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.667 IN |
| Mounting Bolt Hole Diameter | 16.95 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.551 IN |
| Nominal Thickness | 14 MM |
| Outside Diameter | 12.988 IN |
| Outside Diameter | 329.9 MM |
| Overall Height | 2.5 IN |
| Overall Height | 63.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352846872 |
RAYBESTOS 780867 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH321093, YH321093C, YH321093P |
| AUTOPARTSOURCE | 591385 |
| AUTOXTRA | AX900952 |
| AUTOZONE | 72163, 72163DG |
| Autoxtra | AX900952P |
| BENDIX | PRT6103 |
| BOSCH | 16011491 |
| BRAKEBEST | 16011491, 780867, 780867FZN, 780867PER, 780867R, 780867RGS |
| Brembo | 08.N233.11, 08.N233.1X |
| CENTRIC | 120.58005, 120.58005CRY, 121.58005, 126.58005CSL, 126.58005CSR, 126.58005SL, 126.58005SR, 127.58005L, 127.58005R, 128.58005CL, 128.58005CR, 128.58005L, 128.58005R, 320.58005 |
| CHRYSLER | 52124763AB, 52124763AC, 52124763AD |
| Centric Parts | 120.58005, 120.58005CRY, 121.58005, 126.58005CSL, 126.58005CSR, 126.58005SL, 126.58005SR, 127.58005L, 127.58005R, 128.58005CL, 128.58005CR, 128.58005L, 128.58005R, 320.58005 |
| DURA CORP | BR53061, BR900952, BR90095202 |
| DuraGo | BR900952, BR90095202, BR900952-02 |
| Dynamic Friction Company | 604-42004 |
| MAGMA PRODUCTS | PSR145194 |
| NEOTEK | 107327GF |
| NEWTEK AUTOMOTIVE | 53061 |
| Newtek Automotive USA | 53061 |
| Omnicraft | QBRR26 |
| POWERSTOP | AR83075EVC |
| PROMAX | 14-53061 |
| PRONTO | BR900952 |
| Parts Master | 900952 |
| QUALIS | 43178 |
| TopNotch | TN780867GEO |
| UAP | 2053061, 53061 |
| WAGNER | BD180435E |
| WAGNER BRAKE | BD180435, BD180435E, BD180436, BD180436E |
| WINHERE | 661938 |
| WORLDPAC | 1407-321093, 1427-731744 |
| WORLDPARTS | WS1-153061 |
RAYBESTOS 780867 Fits Vehicles
- Dodge Durango (2011-2020)
- Jeep Grand Cherokee (2011-2020)
