(888) 312-8812 Login SignupRAYBESTOS 780867R2 Raybestos R-Line+ Brake Rotor
Tap to view 5 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 780867R2 Part Description
Manufacturer
Product Description

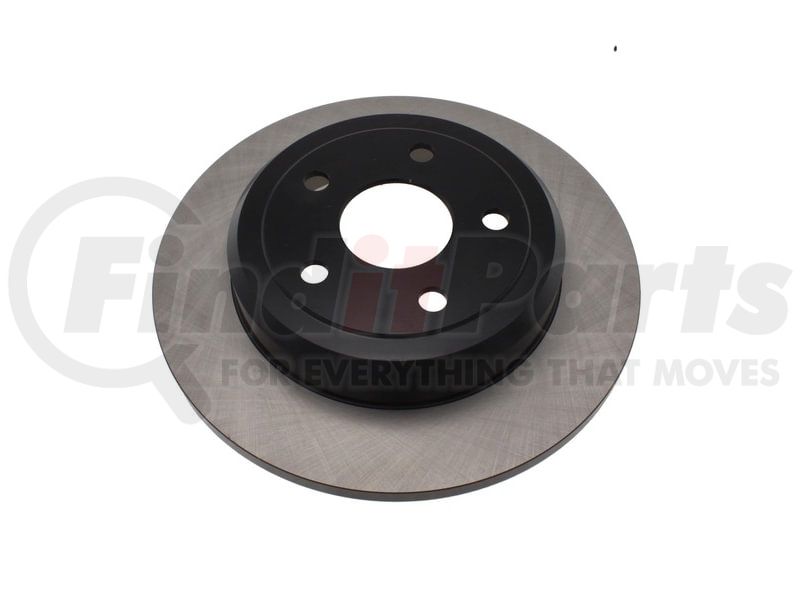

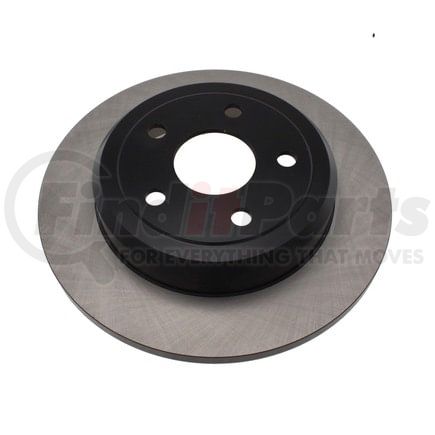

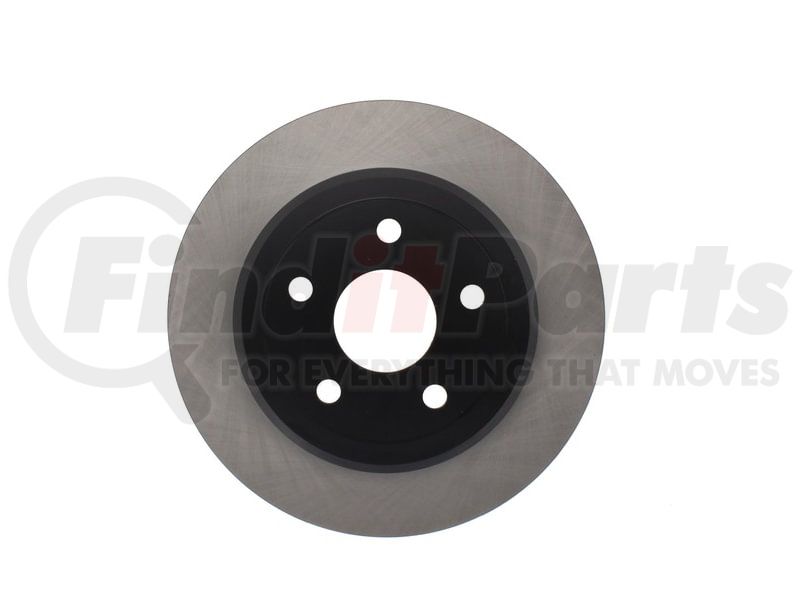

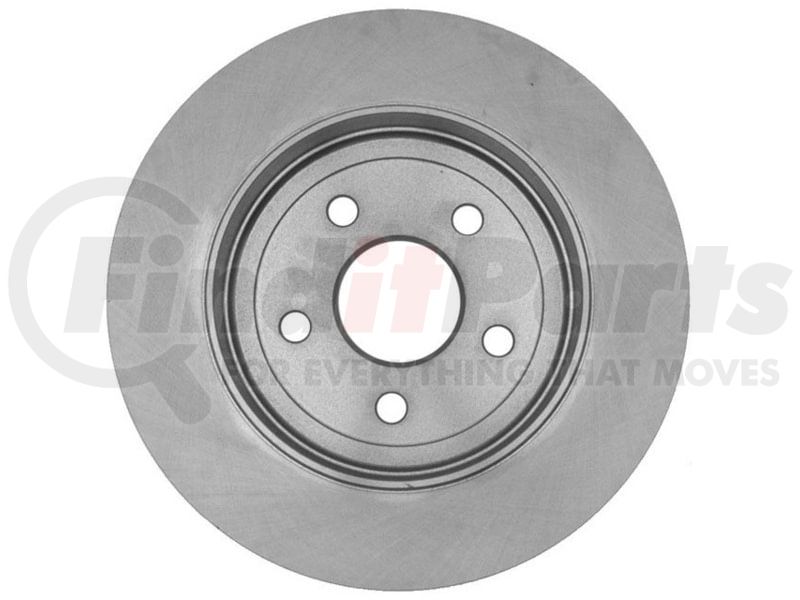

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 780867R2 Specifications
Product Attributes
| Surface Type | Smooth |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.84 IN |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.492 IN |
| Inside Diameter | 8.622 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Diameter | 0.667 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.551 IN |
| Outside Diameter | 12.988 IN |
| Overall Height | 2.5 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Center Hole Diameter | 72.15 MM |
| Discard Thickness | 12.5 MM |
| Inside Diameter | 219 MM |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 16.95 MM |
| Nominal Thickness | 14 MM |
| Outside Diameter | 329.9 MM |
| Overall Height | 63.5 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213447330 |
RAYBESTOS 780867R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH321093, YH321093C, YH321093P |
| AutoZone | 72163, 72163DG |
| Autopartsource | 591385 |
| Autoxtra | AX900952, AX900952P |
| Bendix | PRT6103 |
| Bosch | 16011491 |
| BrakeBest | 16011491, 780867, 780867FZN, 780867PER, 780867R, 780867RGS |
| Brembo | 08.N233.11, 08.N233.1X |
| Centric Parts | 120.58005, 120.58005CRY, 121.58005, 126.58005CSL, 126.58005CSR, 126.58005SL, 126.58005SR, 127.58005L, 127.58005R, 128.58005CL, 128.58005CR, 128.58005L, 128.58005R, 320.58005 |
| Chrysler | 52124763AB, 52124763AC, 52124763AD |
| Dura Corp | BR53061, BR900952, BR90095202 |
| DuraGo | BR900952, BR90095202, BR900952-02 |
| Dynamic Friction Company | 604-42004 |
| Newtek Automotive USA | 53061 |
| Omnicraft | QBRR26 |
| Parts Master | 900952 |
| PowerStop | AR83075EVC |
| Promax | 14-53061 |
| Qualis | 43178 |
| TopNotch | TN780867GEO |
| UAP | 2053061, 53061 |
| WORLDPAC | 1407-321093, 1427-731744 |
| Wagner Brake | BD180435, BD180435E, BD180436, BD180436E |
| Winhere | 661938 |
| Worldparts | WS1-153061 |
RAYBESTOS 780867R2 Fits Vehicles
- Jeep Grand Cherokee (2011-2020)
- Dodge Durango (2011-2020)
