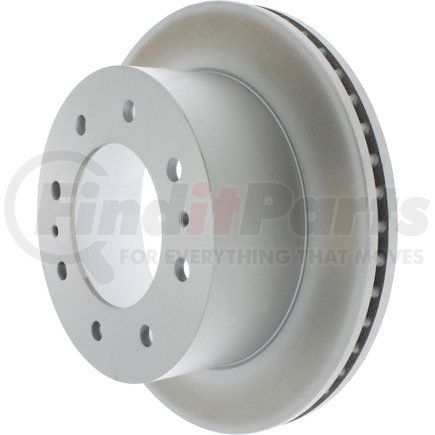

(888) 312-8812 Login SignupCENTRIC 320.66077 Centric GCX Rotor with Partial Coating
Tap to view 4 more
$15849
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Feb 24
CENTRIC 320.66077 Part Description
Manufacturer
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.66077 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 37.250 |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] In | 8.870 |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 16.900 |
| Hat Id [cntrc] Mm | 225.310 |
| Discard Thickness | 1.280 IN |
| Discard Thickness | 32.500 MM |
| Nominal Thickness | 34.100 MM |
| Nominal Thickness | 1.343 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 119.200 MM |
| Overall Height | 4.693 IN |
| Outside Diameter | 14.173 IN |
| Outside Diameter | 360.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 226.240 MM |
| Nominal Drum Diameter | 8.907 IN |
| Bearings Included | No |
| Center Hole Diameter | 5.000 IN |
| Center Hole Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 180.000 MM |
| Mounting Bolt Hole Circle Diameter | 7.087 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 16.200 MM |
| Stud/Lug Hole Diameter | 0.638 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590302288 |
