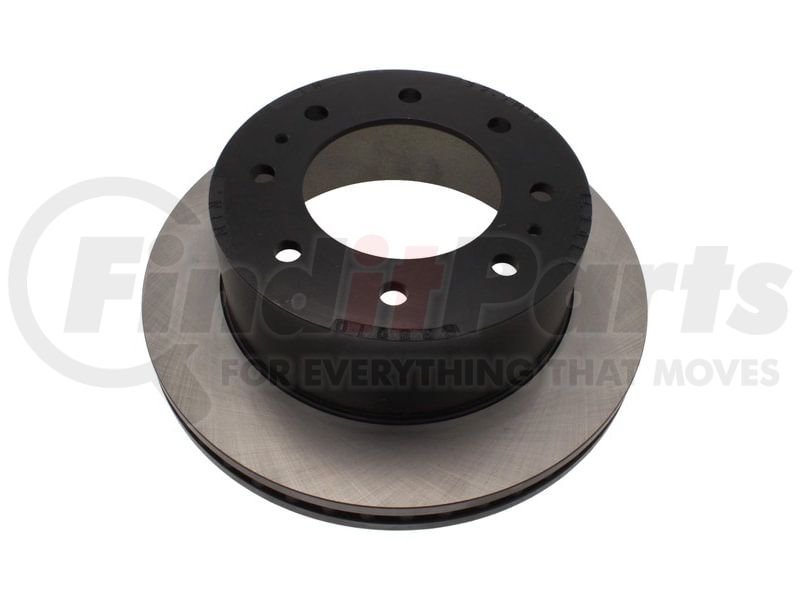

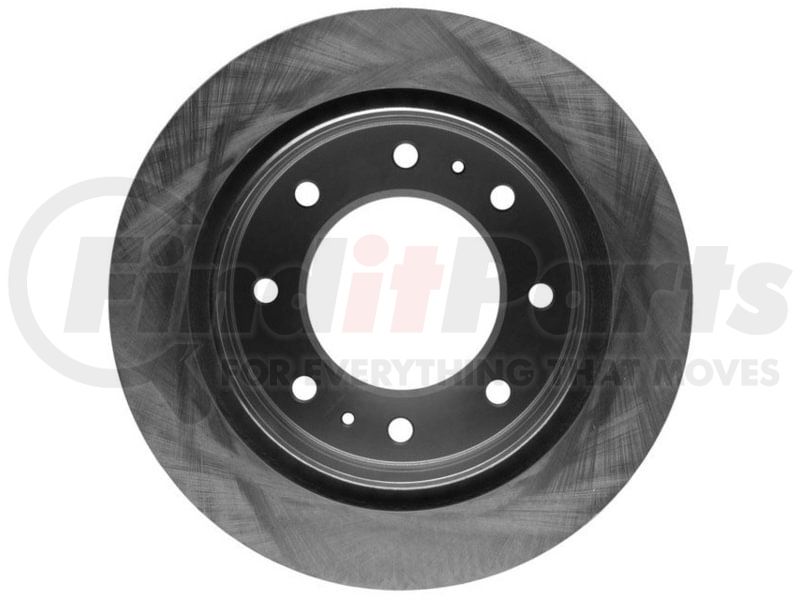

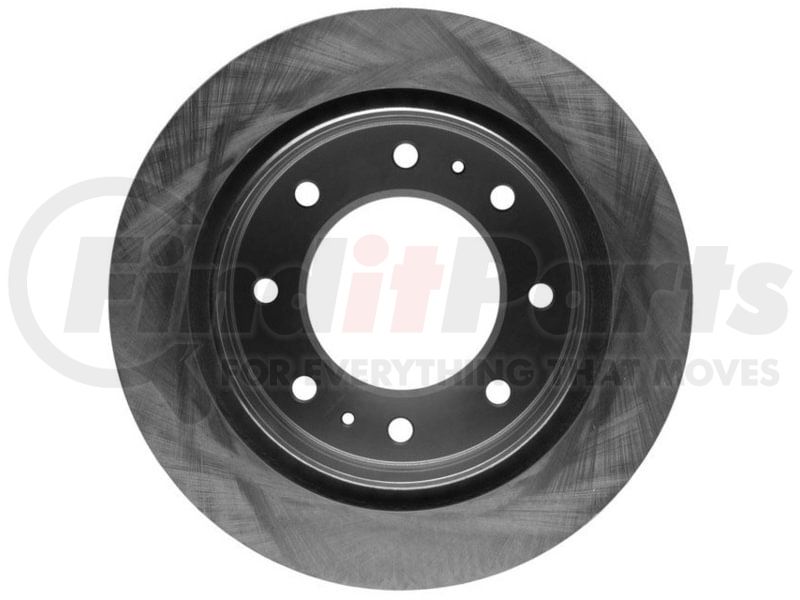

RAYBESTOS 580876R2 Part Description
Manufacturer
Product Description
Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 580876R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5 IN |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.28 IN |
| Inside Diameter | 10.276 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 7.087 IN |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.339 IN |
| Outside Diameter | 14.173 IN |
| Overall Height | 4.685 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| Surface Type | Smooth |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 127 MM |
| Discard Thickness | 32.5 MM |
| Inside Diameter | 261 MM |
| Mounting Bolt Hole Circle Diameter | 180 MM |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Nominal Thickness | 34 MM |
| Outside Diameter | 360 MM |
| Overall Height | 119 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213446067 |
RAYBESTOS 580876R2 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 177-1279 |
| Advance Auto Parts | YH317205C, YH317205P, G09465SD |
| AutoZone | 72021, 72021DG, 72021SD |
| Autopartsource | 493131 |
| Autoxtra | AX901028, AX901028P |
| Bendix | PRT6075 |
| BrakeBest | 580876, 580876FZN, 580876PER, 580876R, 580876RGS |
| Brembo | 09.D271.10 |
| Centric Parts | 120.40082CRY, 120.66077, 121.66077, 126.66077CSL, 126.66077CSR, 126.66077SL, 126.66077SR, 127.66077L, 127.66077R, 128.66077L, 128.66077R, 320.66077, 120.40082 |
| Dura Corp | BR55192, BR901028 |
| DuraGo | 901028, BR901028, BR901028-02 |
| Dynamic Friction Company | 604-48061 |
| General Motors | 13529522, 22761958, 25807301 |
| Newtek Automotive USA | 55192 |
| Parts Master | 901028 |
| PowerStop | AR82155EVC |
| Promax | 14-55192 |
| Qualis | 41269 |
| TopNotch | TN580876GEO |
| UAP | 2901028, R66077 |
| Ultra Brake | 55802 |
| WORLDPAC | 1407-317205, 1427-731815 |
| Wagner Brake | BD180442, BD180442E |
| Winhere | 6621265 |
RAYBESTOS 580876R2 Fits Vehicles
- Chevrolet Silverado 3500 (2015-2018)
- Chevrolet Silverado 2500 (2014-2018)
- Chevrolet Suburban 3500 HD (2016-2019)
- GMC Sierra 2500 HD (2011-2025)
- GMC Sierra 3500 HD (2011-2025)
- Chevrolet Silverado 3500 HD (2011-2025)
- Chevrolet Silverado 2500 HD (2011-2025)
