Centric 121.66077 - C-Tek Standard Brake Rotor
$12199
MSRP: $141.44
Save: $19.45
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

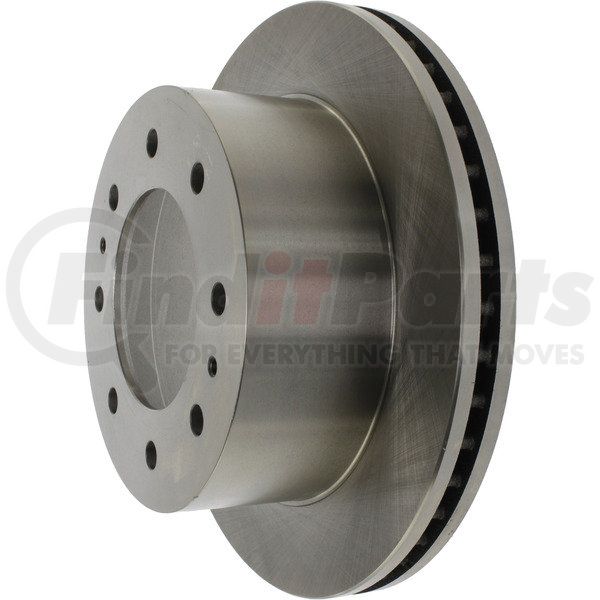

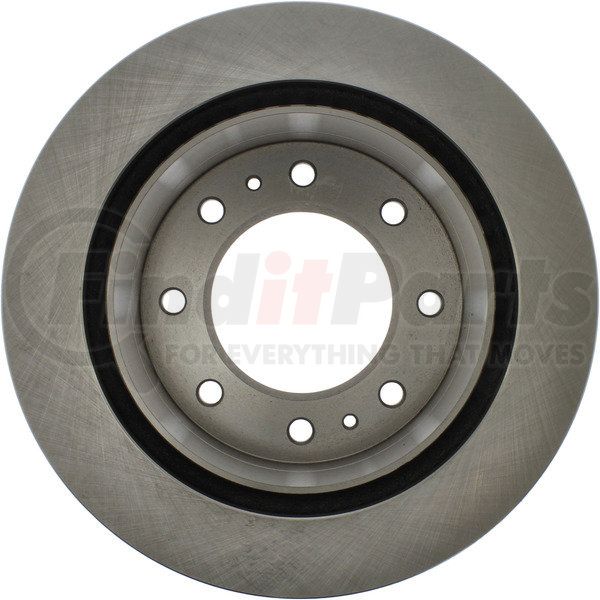

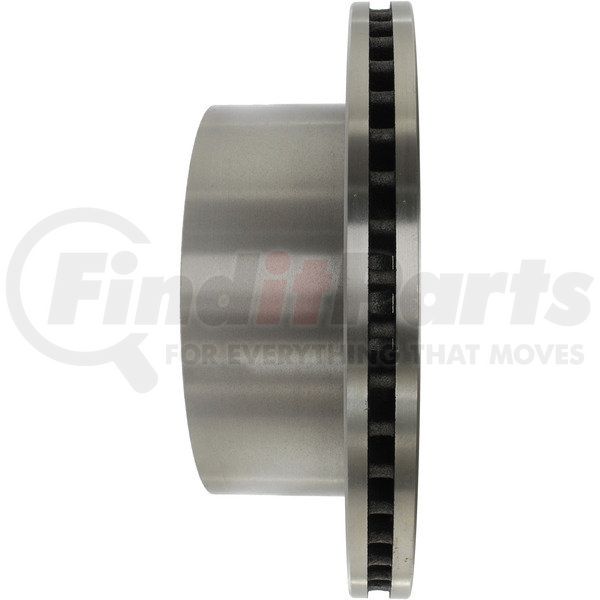

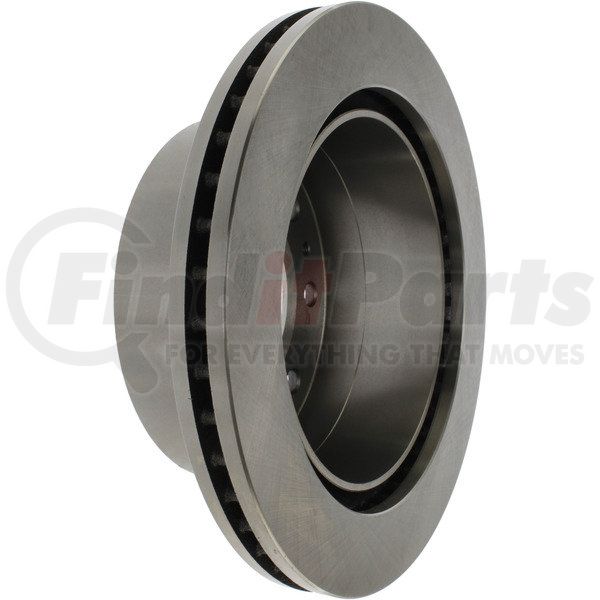

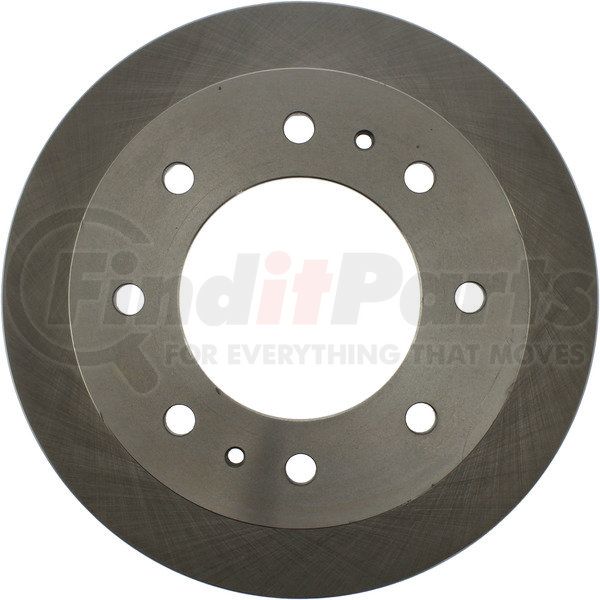

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Vane Style [cntrc] | Straight |
| Hat Id [cntrc] In | 8.870 |
| Product Grade [cntrc] | Standard |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 16.900 |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 37.250 |
| Disc Mounting [cntrc] | Floating / DIH |
| Hat Id [cntrc] Mm | 225.310 |
| Discard Thickness | 1.280 IN |
| Discard Thickness | 32.500 MM |
| Nominal Thickness | 1.343 IN |
| Nominal Thickness | 34.100 MM |
| Overall Height | 119.200 MM |
| Overall Height | 4.693 IN |
| Outside Diameter | 360.000 MM |
| Outside Diameter | 14.173 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 226.240 MM |
| Nominal Drum Diameter | 8.907 IN |
| Bearings Included | No |
| Center Hole Diameter | 5.000 IN |
| Center Hole Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 7.087 IN |
| Mounting Bolt Hole Circle Diameter | 180.000 MM |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 16.200 MM |
| Stud/Lug Hole Diameter | 0.638 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890702726 |
Part Interchanges
CENTRIC 121.66077 Cross Reference
We have 3 alternatives for the 121.66077 by CENTRIC:
Fits Vehicles
- Chevrolet Suburban 3500 HD (2016-2019)
- Chevrolet Silverado 3500 (2015-2018)
- Chevrolet Silverado 2500 (2014-2018)
- GMC Sierra 3500 HD (2011-2024)
- GMC Sierra 2500 HD (2011-2024)
- Chevrolet Silverado 3500 HD (2011-2024)
- Chevrolet Silverado 2500 HD (2011-2024)
