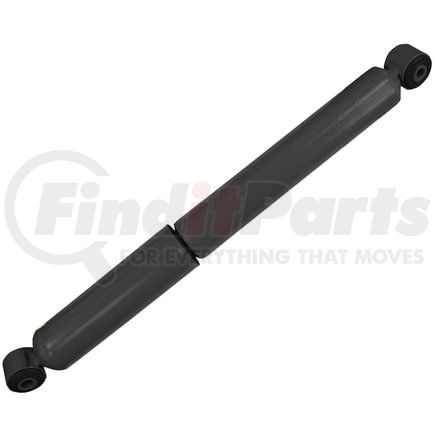

(888) 312-8812 Login SignupMagnum Suspension Shock Absorber
| Lower Mount Code | LS28 |
| Upper Mount Code | LS43 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Body Diameter | 2 IN |
| Compressed Length | 14.28 IN |
| Extended Length | 22.14 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.5/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 7.86 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 39.69MM Sleeve OAL |
| Compressed Length | 362.7 MM |
| Extended Length | 562.4 MM |
| Travel Length | 199.6 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Diameter | 50.8 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS28 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 39.69MM Sleeve OAL |
| Upper Mount Code | LS43 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598210845 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| Mercedes-Benz | 9063200633, 9063200831, 9063201133, 9063201231, 9063201333, 9063201431 |
| NAPA Shocks | 66457 |
| OEM | 9063201431 |
