DELPHI TC1646 Part Description
Manufacturer
Product Description

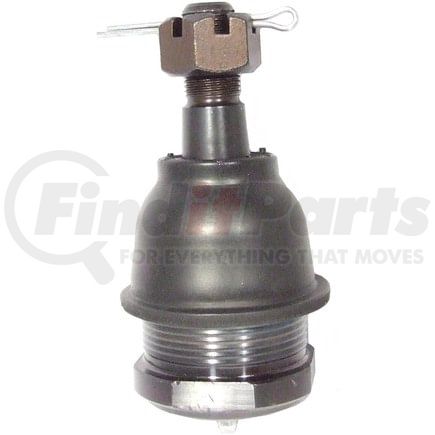

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1646 Specifications
Product Attributes
| Position(s) | Front Upper |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.323 IN |
| Maximum Outside Diameter | 59.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.688 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 59 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 5.177 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 1.201 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.748 IN |
| Stud Tapered End 2 Diameter | 19 MM |
| Stud Tapered End 1 Diameter | 1.118 IN |
| Stud Tapered End 1 Diameter | 28.4 MM |
| Stud Threads Per Inch | 18 |
| Stud Thread Diameter | 17.48 MM |
| Height | 131.50 MM |
| Stud Thread Length | 30.51 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604276983 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC1646 Cross References
DELPHI TC1646 Fits Vehicles
- International Travelall (1975)
- International 200 (1975)
- Dodge B1500 (1995-1998)
- Fargo B300 Van (1972)
- Fargo D200 Pickup (1972)
- Plymouth PB300 Van (1974)
- Dodge D300 Pickup (1972-1974)
- Dodge D200 Pickup (1972-1974)
- Dodge B300 Van (1972-1974)
- Plymouth PB350 (1981-1983)
- Plymouth PB300 (1975-1980)
- Dodge Ram 3500 Van (1999-2003)
- Dodge Ram 2500 Van (1999-2003)
- Dodge D400 (1978-1981)
- Dodge D450 (1978-1981)
- Dodge D350 (1981-1993)
- Dodge D300 (1975-1980)
- Dodge D250 (1981-1993)
- Dodge D200 (1975-1980)
- Dodge CB300 (1973-1980)
- Dodge B3500 (1995-1998)
- Dodge B350 (1981-1994)
- Dodge B300 (1975-1980)
- Dodge B2500 (1995-1998)
