Position(s)	Front Left Lower
Item Grade	Standard Replacement
Material	Steel
Maximum Outside Diameter	2.366 IN
Maximum Outside Diameter	60.10 MM
Color	Black
Stud Thread Diameter	0.63 IN
Stud Thread Diameter	16 MM
Castle Nut Included	Yes
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	70.2 MM
Cotter Pin Included	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Mounting Bolt Length	1.870 IN
Mounting Bolt Length	47.50 MM
Washers Included	Yes
Height	3.689 IN
Height	93.70 MM
Nuts Included	Yes
Mounting Hole Quantity	3
Adjustable	No
Greaseable	No
Stud Thread Length	0.748 IN
Stud Thread Length	19 MM
Wrench Size	19mm
Stud Type	Threaded
Mounting Type	Bolt-In
Distance Between Mounting Holes	78.00 MM
Dust Boot Material	Rubber
Mounting Bolt Shank Diameter	0.472 IN
Mounting Bolt Shank Diameter	12.00 MM
Mounting Bolt Head Diameter	0.831 IN
Mounting Bolt Head Diameter	21.10 MM
Mounting Bolts Included	Yes
Mounting Bolt Thread Pitch	1.25 MM
Mounting Bolt Thread Length	1.181 IN
Mounting Bolt Thread Length	30.00 MM
Mounting Bolt Thread Diameter	12.00 MM
Mount Plate Included	No
Tapered Stud	Yes
Stud Tapered End 2 Diameter	0.866 IN
Stud Tapered End 2 Diameter	22 MM
Stud Tapered End 1 Diameter	0.768 IN
Stud Tapered End 1 Diameter	19.5 MM
Stud Thread Pitch	1.5 MM
Mounting Bolt Thread Diameter	0.470 IN

Harmonized Tariff Code (Schedule B)	8708807000
Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	CN
UPC	00689604258033
VMRS Code	016001015
UNSPSC	25174203

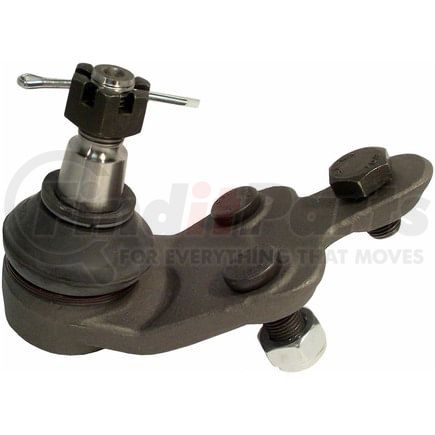

Delphi TC2558 - Ball Joint

Ball Joint
