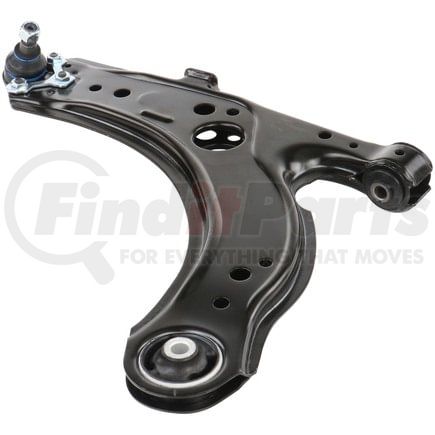

(888) 312-8812 Login SignupDELPHI TC786 Control Arm and Ball Joint Assembly
Tap to view 15 more
SHIPS TODAY
$7249
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 17
DELPHI TC786 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC786 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 6.142 IN |
| Control Arm Maximum Width | 156.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.610 IN |
| Ball Joint Stud Length | 15.50 MM |
| Control Arm Maximum Length | 18.350 IN |
| Control Arm Maximum Length | 466.10 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604260166 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC786 Cross References
| Brand | Part Number |
|---|---|
| Audi | 1J0 407 151A |
| Beck/Arnley | 101-5884, 102-5884 |
| CORTECO | 49399127, 49398710 |
| DORMAN | CB43193, CB43193PR |
| Deeza | VW-H104 |
| Dorman | 520-760, 524-143, 524-144 |
| MAS Industries | CA43095, CA43095PR, CB43193, CB43193PR, CB43194, CB43194PR |
| MEVOTECH | CMS20475 |
| MEYLE | 1160500156, 1160500009HD, 1160500010HD, 1166100000HD, 1166100001HD |
| MOOG Chassis Products | CK620717, RK620717, RK640176 |
| Mevotech | CMS701121, MS20475 |
| N/A | 1J0 407 365A, CMS20475 |
| Seat | 1J0 407 151A |
| Skoda | 1J0 407 151A |
| TRW | JTC342 |
| VAICO | V107298 |
| Volkswagen | 1J0 407 151 C, 1J0 407 151A |
DELPHI TC786 Fits Vehicles
- Volkswagen Jetta City (2007-2009)
- Volkswagen Jetta (1999-2005)
- Volkswagen Golf (1999-2006)
- Volkswagen Beetle (1998-2010)
