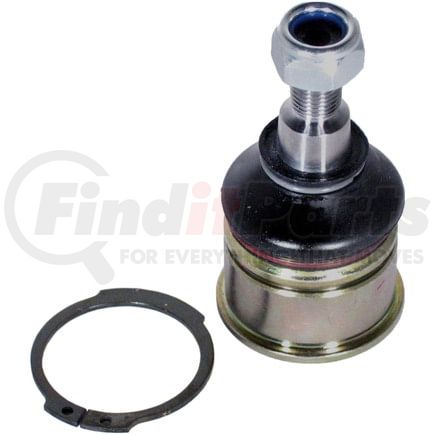

DELPHI TC683 Part Description
DELPHI TC683 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.839 IN |
| Maximum Outside Diameter | 46.70 MM |
| Color | Gray |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 46.7 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | No |
| Washers Included | No |
| Height | 3.311 IN |
| Height | 84.10 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.713 IN |
| Stud Thread Length | 18.1 MM |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.709 IN |
| Stud Tapered End 2 Diameter | 18 MM |
| Stud Tapered End 1 Diameter | 0.634 IN |
| Stud Tapered End 1 Diameter | 16.1 MM |
| Stud Thread Pitch | 1.25 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604259931 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC683 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4102 |
| CORTECO | 49395816 |
| DORMAN | B9643, B9643XL |
| Deeza | HN-G201 |
| Honda | 51220-S84-A01, 51220-S84-A02, 51220-SM0-003, 51220-SM1-A01, 51220-SM1-A02, 51220-SM4-003, 51220-SM4-013, 51220S84305 |
| Import Direct | BJ06004 |
| MAS Industries | B9643, BJ59026 |
| MEVOTECH | TXK9643 |
| MOOG | K9643 |
| MOOG Chassis Products | K9643 |
| Mcquay-Norris | FA1751 |
| Mevotech | MK9643, MS50506, MS6063, MS6064, MS6066 |
| N/A | 51220S0AJ01, 51220S4KA00, GK9643, TXK9643, B9643XL |
| Raybestos Chassis | 505-1162 |
| Rover | GSJ1002, GSJ404 |
| TRW | JBJ152 |
DELPHI TC683 Fits Vehicles
- Honda Odyssey (1995-1998)
- Honda Accord (1990-2002)
- Acura TL (1999-2003)
- Acura CL (1997-1999, 2001-2003)
- Isuzu Oasis (1996-1999)
