(888) 312-8812 Login SignupDORMAN B9643XL Suspension Ball Joint
Tap to view 1 more
$48.82
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

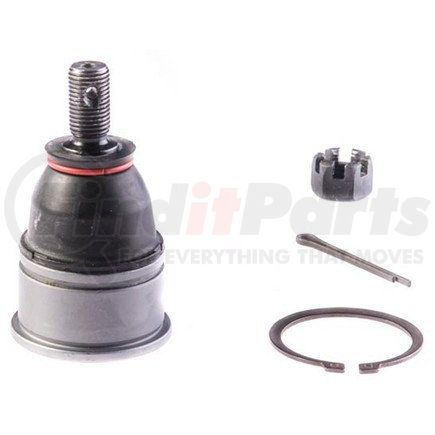

DORMAN B9643XL Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Acura 2003-97, Honda 2002-90, Isuzu 1999-96
Features & Benefits
- Extended-life construction - this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN B9643XL Specifications
Product Attributes
| Stud Type | Cónico |
| Mounting Type | Presionar hacia adentro |
| Dust Boot Material | Policloropreno |
| Attachment Type | Cono |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Housing Press Fit Diameter | 42 mm |
| Package Contents | Retaining Ring |
| Material | Acero |
| Thread Pitch | 1.25 |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Oui |
| Suspension Grade Type | Premium |
| Cotter Pin Hole | Oui |
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 0 |
| Adjustable | Non |
| Greaseable | Non |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Housing Press Fit Diameter | 42 mm MM |
| Thread Pitch | 1.25 mm mm |
| Nuts Included | Oui |
| Stud Thread Diameter | 12 mm MM |
| Stud Thread Pitch | 1.5 mm MM |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00669810706818 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN B9643XL Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45D2291, 46D2291A |
| Beck/Arnley | 1014102, 101-4102 |
| Centric Parts | 610.40003 |
| Delphi | TC683 |
| Honda | 51220S84305, 51220S84A02, 51220SM1013, 51220SM1A01, 51220SM1A02, 51220SM4003, 51220SM4013 |
| MEVOTECH | MK9643, TXK9643 |
| MOOG | K9643 |
| MOOG Chassis Products | K9643 |
| Mcquay-Norris | FA1751, FA1751GL |
| Mevotech Original Grade | GK9643 |
| Mevotech Supreme | MK9643 |
| Mevotech TTX | TXK9643 |
| QuickSteer | K9643 |
| SUSPENSIA | X17BJ0603 |
| SYD | K-9643, K9643 |
| TRW | JBJ152 |
| XRF | K9643 |
| XRF Chassis | K9643 |
DORMAN B9643XL Fits Vehicles
- Acura CL (1997-1999, 2001-2003)
- Acura TL (1999-2003)
- Honda Accord (1990-2002)
- Honda Odyssey (1995-1998)
- Isuzu Oasis (1996-1999)
DORMAN B9643XL Customer Reviews
No reviews yet
Be the first to review this product!
DORMAN B9643XL Manufacturer Information
Dorman® is a trusted supplier of premium-quality replacement parts, hardware, and fasteners to the automotive aftermarket. Since 1918, it has introduced thousands of these replacement parts that customers could once only get from original equipment manufacturers. Dorman believes that customers should always come first. So its dedicated team of engineers and designers creates each Dorman product with only one goal in mind—to make repair tasks easier and faster for mechanics and to save vehicle owners money from expensive repairs. Dorman continually expands its product line-up to offer a broader range of hard-to-find parts and accessories that could replace rare or expensive OEM parts.
