(888) 312-8812 Login SignupDELPHI TC2402 Control Arm and Ball Joint Assembly
Tap to view 2 more
$11599
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI TC2402 Part Description
Manufacturer
Product Description

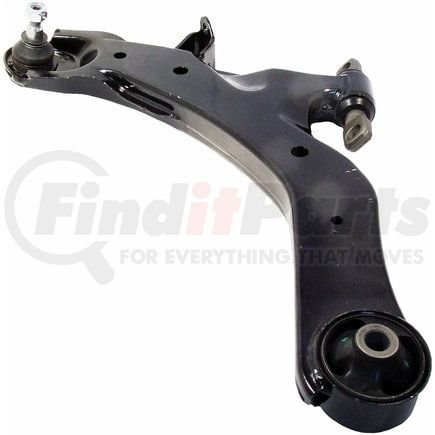

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2402 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 14.764 IN |
| Control Arm Maximum Width | 375.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 2.835 IN |
| Ball Joint Stud Length | 72.00 MM |
| Control Arm Maximum Length | 16.929 IN |
| Control Arm Maximum Length | 430.00 MM |
| Mounting Hole Diameter | 0.591 IN |
| Mounting Hole Diameter | 15.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604257357 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC2402 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5361, 101-5362, 102-5361, 102-5362 |
| CORTECO | 49397364 |
| DORMAN | CB60053, CB60053PR |
| Dorman | 520-973 |
| Hyundai | 54500-2D000, 54500-2D001, 54500-2D002, 545002D002AS, 545002D002DS |
| Kia | 545002D002AS, 545002D002DS |
| MAS Industries | CB60053, CB60053PR |
| MOOG | RK620328, CK620328 |
| MOOG Chassis Products | CK620328, K620328, RK620328, RK620520, 102-5362, K201658 |
| Mevotech | CMS80100, MS80100 |
| N/A | GS80100, 623.51018 |
| TRW | JTC7687 |
DELPHI TC2402 Fits Vehicles
- Hyundai Elantra (2001-2006)
