(888) 312-8812 Login SignupDELPHI TC1386 Control Arm and Ball Joint Assembly
Tap to view 23 more
$13499
Limited availability at this price!
In Stock
Get it by Friday, Feb 6
DELPHI TC1386 Part Description
Manufacturer
Product Description

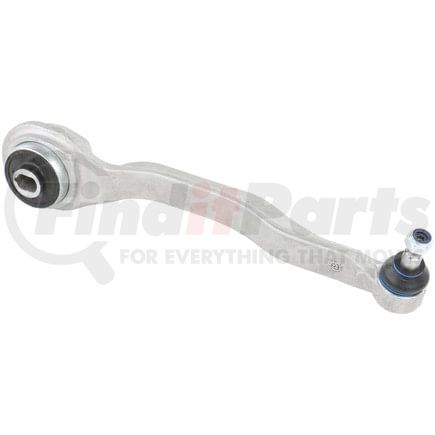

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1386 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower, Front Right Lower Forward. For the position specific to your vehicle, refer to the Applications. |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Greaseable | No |
| Control Arm Maximum Width | 3.937 IN |
| Control Arm Maximum Width | 100.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 70.00 MM |
| Control Arm Maximum Length | 18.504 IN |
| Control Arm Maximum Length | 470.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 2.756 IN |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252161 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1386 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6709, 102-6709 |
| CORTECO | 49398457 |
| DORMAN | 520-964, CB28184, CB28184PR |
| Deeza | MB-H206 |
| MAS Industries | CB28184 |
| MEYLE | 016 050 0033, 0160500033HD |
| MOOG | RK620539 |
| MOOG Chassis Products | CK620539, K620539, K620728, RK620539, RK620728 |
| Mercedes-Benz | 211 330 12 11, 211 330 16 11, 211 330 30 11, 211 330 44 11, 230 330 1811, A211 330 1211, A211 330 1611, A211 330 3011, A211 330 4411, A230 330 1811 |
| Mevotech | CMS10146, MS101191 |
| N/A | GS10146, CB28184PR, 520-964, 622.35007, 2113305011, A 211 330 50 11 |
| TRW | JTC1117 |
| VAICO | V30-7334 |
DELPHI TC1386 Fits Vehicles
- Mercedes-Benz SL63 AMG (2009, 2011-2012)
- Mercedes-Benz E550 (2007-2009)
- Mercedes-Benz CLS550 (2007-2011)
- Mercedes-Benz E63 AMG (2007-2009)
- Mercedes-Benz CLS63 AMG (2007-2011)
- Mercedes-Benz SL550 (2007-2009, 2011-2012)
- Mercedes-Benz E350 (2006-2009)
- Mercedes-Benz CLS55 AMG (2006)
- Mercedes-Benz CLS500 (2006)
- Mercedes-Benz SL65 AMG (2005-2009, 2011)
- Mercedes-Benz SL600 (2004-2009)
- Mercedes-Benz E55 AMG (2003-2006)
- Mercedes-Benz SL500 (2003-2006)
- Mercedes-Benz SL55 AMG (2003-2008)
- Mercedes-Benz E500 (2003-2006)
- Mercedes-Benz E320 (2003-2009)
