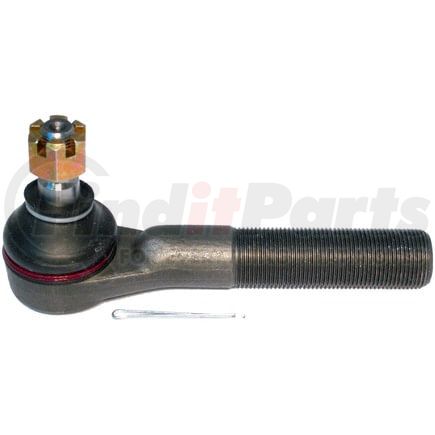

(888) 312-8812 Login SignupDELPHI TA2033 Tie Rod End
MSRP: $27.00
$2249
Save $4.51
Limited availability at this price!
In Stock
Get it by Thursday, Jan 29
DELPHI TA2033 Part Description
DELPHI TA2033 Specifications
Product Attributes
| Position(s) | At Pitman Arm, Front Left Inner (To Pitman Arm), Front Right Inner (To Pitman Arm), Left Outer (Steering Arm To Steering Arm). For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 45 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.866 IN |
| End 2 Thread Diameter | 22.00 MM |
| Height | 76.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.6 lb |
| Cone Outside Diameter | 15.80 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 5.354 IN |
| Length - Stud Center to End | 136.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Threads Per Inch | 20 |
| End 1 Thread Diameter | 0.500 IN |
| End 1 Thread Diameter | 12.70 MM |
| Shank Length | 15.80 MM |
| Stud Length | 15.80 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.622 IN |
| Stud Length | 0.622 IN |
| Cone Outside Diameter | 0.622 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604246955 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA2033 Cross References
DELPHI TA2033 Fits Vehicles
- Jeep TJ (1997-2006)
- Jeep Wrangler (1995, 1997-2006)
- Jeep Grand Wagoneer (1993)
- Jeep Grand Cherokee (1993-1998)
- Jeep Comanche (1991-1992)
- Jeep Cherokee (1991-2001)
